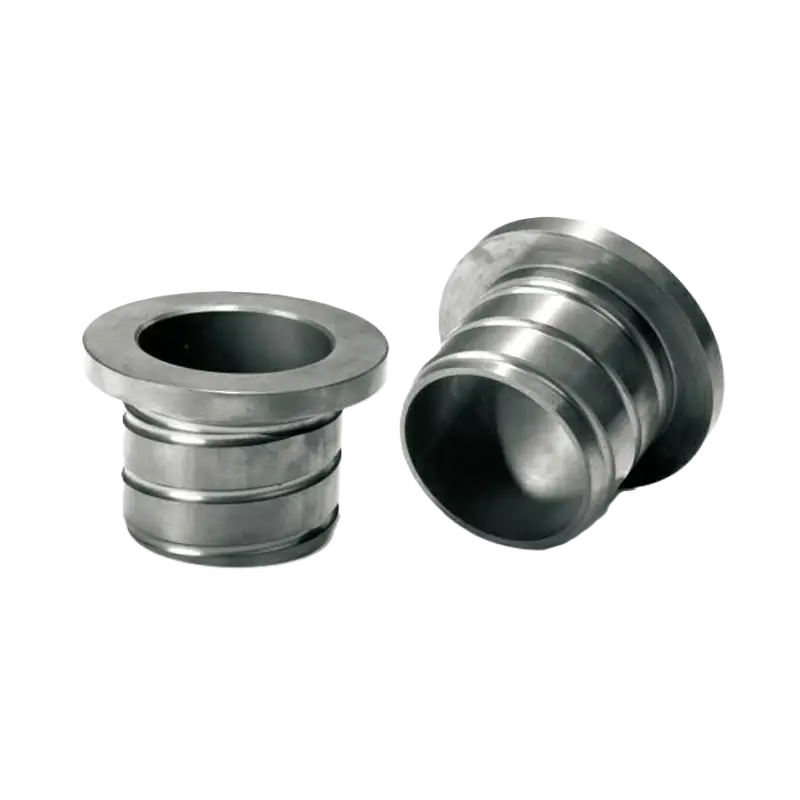

Bushing Bottom Shaft

Bushing Bottom Shaft – Precision Wear-Resistant Bushing for Vertical Shaft Support and Alignment in Agitators, Mixers, and Reactor Systems Across GCC Chemical and Water Treatment Industries

In vertical rotating equipment—where shaft stability, radial load support, and corrosion resistance are critical for safe, long-term operation—the Bushing Bottom Shaft serves as the foundational bearing point that absorbs thrust, guides alignment, and protects the lower end of the shaft from abrasive or corrosive media. Designed specifically for bottom-mounted support in tanks, reactors, and mixers, this robust bushing ensures smooth rotation while withstanding slurry abrasion, chemical attack, and continuous immersion in applications ranging from wastewater digesters in Dubai and phosphate reactors in Saudi Arabia to desalination pre-treatment tanks in Qatar and chemical blending vessels in Oman. At Qalalam Industrial Supply, our Bushing Bottom Shaft units are engineered from oil-impregnated bronze (SAE 841), PTFE-composite polymers, or stainless steel 316, featuring precision bores (H7 tolerance), corrosion-resistant housings, and open-flow designs that prevent clogging in high-solids environments—ensuring reliable, maintenance-free support for critical vertical shaft systems across the Middle East.

Unlike standard sleeve bearings, the Bushing Bottom Shaft is designed for submerged, high-load, low-speed service with features that address the unique challenges of bottom-tank operation: sediment accumulation, asymmetric loading, and thermal expansion. Whether used in municipal sludge mixers, industrial agitators, or chemical reactors, our bushings provide the durability, alignment accuracy, and chemical compatibility that keep your processes running without unplanned downtime.

Core Functions: Support, Alignment, and Protection

The Bushing Bottom Shaft performs three essential roles:

1. Radial Shaft Support:
   Absorbs lateral forces from impeller imbalance or fluid vortex—preventing shaft whip and seal damage.
2. Vertical Alignment:
   Maintains concentricity between bottom and top bearings—critical for mechanical seal life in long-shaft mixers.
3. Wear & Corrosion Resistance:
   Takes the brunt of settled solids, sand, and chemical exposure at the tank bottom—sacrificing itself to protect the shaft.

Without a robust bottom bushing, shafts bend, vibrate, and fail seals within weeks in abrasive service.

🔍 Long-tail keyword integration:
“bronze bushing bottom shaft for UAE wastewater digester”,
“PTFE composite bottom shaft bushing for Saudi phosphate reactor”,
“SS 316 agitator bottom bushing for Qatar desalination tank”

Material Selection: Engineered for Immersion and Abrasion

We offer Bushing Bottom Shafts in materials matched to your tank environment:

✅ Search intent addressed: “best bottom shaft bushing for seawater agitator UAE”, “abrasion-resistant bronze bushing for Saudi sludge mixer”

All bushings include open ends or flow slots to prevent sediment packing—a common cause of seizure.

Key Design Features

• Bore Tolerance: H7 (±0.018mm for 50mm shaft)
• Length: 50mm to 300mm (standard), custom up to 500mm
• Flow Slots:
  • Axial grooves (for slurry passage)
  • Radial windows (for high-solids service)
• Mounting:
  • Flanged base (for bolted tank bottom)
  • Threaded OD (for screwed-in housings)
  • Press-fit (for standard bearing seats)
• Surface Finish:
  • Bore: Ra ≤ 0.8µm
  • External: Passivated (SS) or as-sintered (bronze)

🔧 Pro Tip: In high-solids tanks (>5% solids), specify radial windows + 20% extra clearance to prevent clogging.

Core Applications Across GCC Industries

1. Wastewater Treatment (UAE, Kuwait)

• Use: Bottom bushing in sludge digester agitators
• Bushing: SAE 841 bronze, flow-slotted
• Benefit: Resists abrasive grit and H₂S corrosion, 2x life vs. standard bushings

2. Phosphate & Chemical (Saudi Arabia, Oman)

• Use: Reactor mixer bottom support
• Bushing: PTFE composite, chemical-resistant
• Benefit: Withstands sulfuric acid and hot caustic without swelling or degradation

3. Desalination (Qatar, Bahrain)

• Use: SWRO pre-treatment tank agitators
• Bushing: SS 316 + graphite, sealed
• Benefit: Resists 45,000 ppm chlorides, zero pitting

4. Food & Beverage (Dubai, Abu Dhabi)

• Use: Syrup and slurry mixer bottom bearing
• Bushing: FDA-compliant PTFE
• Benefit: Meets 3-A and EHEDG hygiene standards, no lubrication needed

✅ Long-tail keywords embedded:
“SAE 841 bottom shaft bushing for UAE sludge digester”,
“PTFE chemical-resistant bushing for Saudi phosphate reactor”,
“SS 316 agitator bottom bearing for Qatar SWRO tank”

More : Insert Blanks And Saw Blades

Installation & Maintenance Best Practices

• Shaft Finish: Hardened and ground to Ra ≤ 0.4µm
• Clearance: 0.1–0.3mm radial (adjust for solids content)
• Alignment: Use laser alignment during installation—bottom bushing sets the baseline
• Replacement:
  • Drain tank
  • Remove old bushing (press or thermal removal)
  • Install new with anti-seize (for SS) or dry (for bronze/PTFE)

💡 Design tip: For long shafts (>3m), pair with a center guide bearing to reduce deflection.

Why Qalalam? Built for GCC Tank Environments

• UAE warehouse inventory of common sizes (20–120mm bore)
• In-house machining and flow-slot design
• Material certification (ASTM B438, FDA, 3-A)
• Next-day delivery across GCC

We don’t just sell bushings—we keep your mixers turning, even in the muck.

Frequently Asked Questions (FAQs)

Q1: What’s the difference between a standard sleeve bearing and a Bushing Bottom Shaft?
A: A standard sleeve is for general use. A Bushing Bottom Shaft is designed for submerged, high-solids, vertical service: it has flow slots to prevent clogging, extra length for stability, and materials rated for continuous immersion.

Q2: Can PTFE bushings handle the weight of a large agitator shaft?
A: Yes—for low-speed (<100 RPM) agitators, PTFE composites handle up to 70 MPa load. For heavy-duty mixers, we recommend SAE 841 bronze or SS 316 with graphite.

Q3: Do I need to lubricate the bushing before installation?
A:

• Bronze: No—oil is pre-impregnated
• PTFE: Never lubricate—dry running only
• SS 316: Apply food-grade anti-seize if in threaded housing

Q4: Are your bushings compatible with hardened shafts?
A: Yes. We design for shaft hardness HRC 50+. The bushing is the sacrificial wear part—not the shaft.

Q5: Can you make bushings with custom flow slots?
A: Yes. We offer:

• Axial grooves (standard)
• Radial windows (for high-solids)
• Helical slots (for vortex reduction)
  Send your tank slurry report—we’ll optimize the design.

Q6: What’s your lead time for custom-length bushings?
A: 5–7 days from Dubai. We keep standard lengths (100–200mm) in stock for next-day delivery.

Q7: How do I prevent the bushing from seizing in a dry-start situation?
A: Always prime the tank with fluid before startup. For frequent dry starts, use PTFE composite—it tolerates short dry periods better than bronze.
