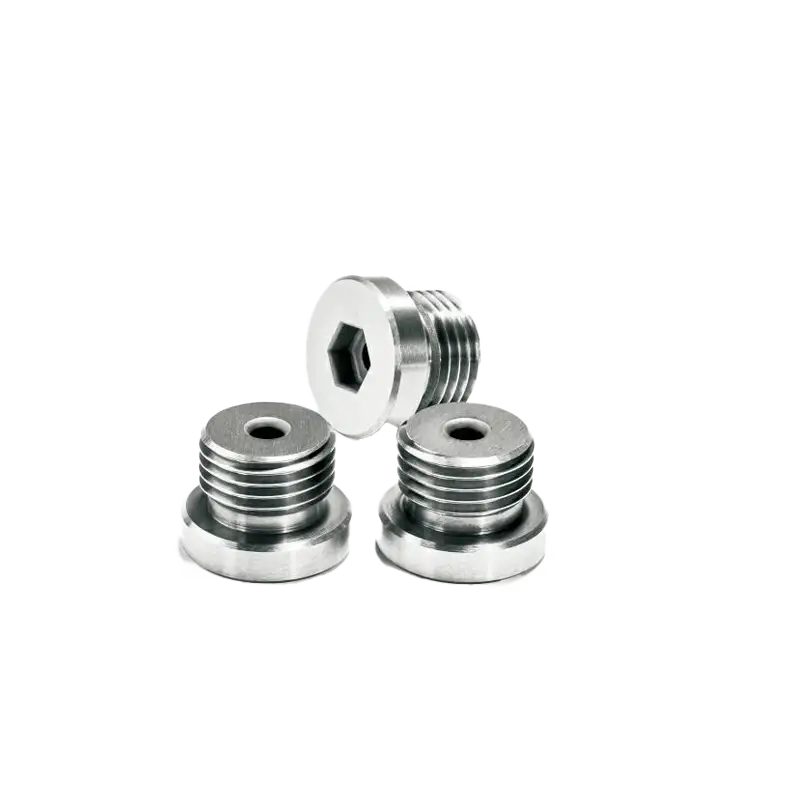

Superhard Carbide Nozzle

Superhard Carbide Nozzle – Extreme-Wear Nozzle for High-Pressure Waterjet, Mining Slurry, and Abrasive Jetting in the Harshest GCC Industrial Environments

When standard carbide nozzles fail within hours in the most aggressive applications—such as sand-laden waterjet cutting, mining slurry transport, oilfield proppant injection, and dredging operations—the Superhard Carbide Nozzle delivers unmatched durability and performance. Engineered from ultra-fine or nano-grain tungsten carbide (0.2–0.5µm) with optimized cobalt binding and HIP-densified microstructure, this nozzle maintains precise orifice geometry under extreme erosion, delivering 4–5x longer service life than conventional carbide and 10x longer than ruby or sapphire in abrasive media. From aluminum cutting workshops in Dubai to phosphate mines in Saudi Arabia, copper dredging in Oman, and hydraulic fracturing fleets across the UAE, Qalalam Industrial Supply’s Superhard Carbide Nozzles provide the erosion resistance, thermal stability, and jet coherence that keep high-value industrial processes running with minimal downtime.

Unlike general-purpose nozzles, the Superhard variant is purpose-built for particle-laden, high-velocity fluid streams where even microscopic orifice enlargement causes rapid performance degradation. Its monolithic construction, mirror-finished flow paths, and erosion-resistant geometry ensure consistent jet velocity, reduced fluid consumption, and lower cost-per-hour—making it the ultimate solution for operations where abrasion is the primary wear mechanism.

What Makes It “Superhard”? Advanced Material Science

The “Superhard” designation refers to a specialized grade of cemented carbide engineered beyond standard YG6/YG8:

• Ultra-Fine Grain Structure (0.2–0.5µm): Minimizes intergranular erosion from sharp quartz and sand particles
• Controlled Cobalt Content (6–8%): Balances hardness (92–94 HRA) with transverse rupture strength (>2,900 MPa)
• Hot Isostatic Pressing (HIP): Eliminates internal porosity—critical for preventing micro-crack initiation
• Laser-Polished Flow Surfaces (Ra ≤ 0.1µm): Reduces turbulence and cavitation at ultra-high pressures

This combination allows the nozzle to retain orifice tolerance (±0.005mm) even after thousands of operating hours in abrasive service.

🔍 Long-tail keyword integration:
“superhard carbide nozzle for waterjet cutting UAE”,
“nano-grain carbide nozzle for phosphate mining Saudi Arabia”,
“abrasion-resistant slurry jet nozzle for dredging Oman”

Material Grades: Tailored to Your Abrasive Challenge

We offer two Superhard grades:

✅ Search intent addressed: “best carbide grade for 100-mesh sand waterjet”, “nano-carbide nozzle for aerospace titanium cutting UAE”

Both grades are HIP-treated and stress-relieved for maximum reliability.

Key Technical Specifications

• Orifice Diameter: 0.05mm to 3.0mm (standard), custom up to 5.0mm
• Orifice Tolerance: ±0.005mm (for precision applications)
• Max Pressure: 6,000 bar (90,000 PSI)
• Max Temperature: 500°C continuous
• Surface Finish:
  • Flow bore: Ra ≤ 0.1µm (laser-polished)
  • External: Ra ≤ 0.8µm
• Thread Types: BSP, NPT, Metric (1/8″ to 1″)

🔧 Pro Tip: For abrasive waterjet, use SHN-8U with 0.3mm orifice—optimal balance of life and cutting speed in garnet slurry.

Core Applications Across GCC Industries

1. Waterjet Cutting (UAE, Qatar)

• Use: Cutting stainless steel, titanium, and composites with garnet
• Nozzle: SHN-8U, 0.3mm orifice, 1/4″ BSP
• Benefit: 80+ hours life vs. 20 hours for standard carbide

2. Mining & Dredging (Saudi Arabia, Oman)

• Use: Hydro-monitoring in phosphate and copper mines
• Nozzle: SHN-8U, 1.5mm orifice
• Benefit: Resists quartz abrasion in high-velocity slurry

3. Oilfield Fracturing (UAE, Kuwait)

• Use: Surface injector nozzles for proppant-laden fluid
• Nozzle: SHN-8U, 4.0mm orifice
• Benefit: Maintains stable treating pressure over 5+ stages

4. Desalination Pre-Treatment (Bahrain, UAE)

• Use: Slurry jetting for membrane cleaning
• Nozzle: SHN-6U, 0.5mm orifice
• Benefit: Resists silica and calcium carbonate abrasion

✅ Long-tail keywords embedded:
“SHN-8U carbide nozzle for waterjet cutting Dubai”,
“superhard slurry nozzle for Saudi phosphate mine”,
“nano-carbide jet nozzle for Oman dredging”

Performance Comparison: Why Superhard Wins

Field data from a Dubai metal fabricator: 70% reduction in nozzle changes and 15% faster cutting speed with SHN-8U.

More : A-Type Long Nozzle

Why Qalalam? Built for GCC Abrasion

• Local UAE inventory of common orifice sizes (0.2–1.0mm)
• In-house laser polishing and metrology
• Field-tested in GCC mining and oilfield
• Bulk pricing with next-day delivery

We don’t just sell nozzles—we extend your jet life in abrasive hell.

Frequently Asked Questions (FAQs)

Q1: What’s the difference between a standard carbide nozzle and a Superhard Carbide Nozzle?
A: Standard carbide (e.g., YG8) has 0.8–1.2µm grains—good for clean waterjet. Superhard uses ultra-fine/nano grains (0.2–0.5µm) and optimized cobalt to resist particle erosion. In abrasive slurry, Superhard lasts 4–5x longer and maintains jet coherence far better.

Q2: Can your Superhard nozzle be used in pure water applications?
A: Yes—but it’s over-engineered for pure water. For pure waterjet, standard carbide or even ruby is more economical. Superhard excels only when abrasives (garnet, sand, slurry) are present.

Q3: How small an orifice can you produce reliably?
A: 0.05mm (50 microns) with ±0.005mm tolerance. Below this, clogging risk increases—even with filtered water. For micro-jetting, we recommend pulse-assisted systems that self-clean.

Q4: Are your nozzles compatible with KMT, Flow, or Jet Edge waterjet systems?
A: Absolutely. We maintain a cross-reference database for all major OEMs. Just provide your machine model or old nozzle part number (e.g., Flow #12345), and we’ll supply a direct-fit replacement.

Q5: Do you offer coated Superhard nozzles for extra corrosion resistance?
A: Yes. For highly acidic or chlorinated environments (e.g., desalination brine), we apply a thin TiN (titanium nitride) coating that adds corrosion protection without affecting orifice size. Standard lead time: +2 days.

Q6: How do I know when to replace my Superhard nozzle?
A: Watch for:

• Cutting speed drops by >15%
• Kerf width increases visibly
• Jet stream appears “fuzzy”
• Pressure gauge shows higher readings for same flow
  We recommend weekly orifice inspection with a 50x microscope.

Q7: What’s your lead time for custom orifice sizes?
A: 5–7 days from Dubai for standard grades. 10 days for nano-grain custom sizes. We keep 0.2–1.0mm SHN-8U in stock for next-day delivery.

Model NO20. Diameter: 10.2 mm. Made from superhard carbide for extended life.
