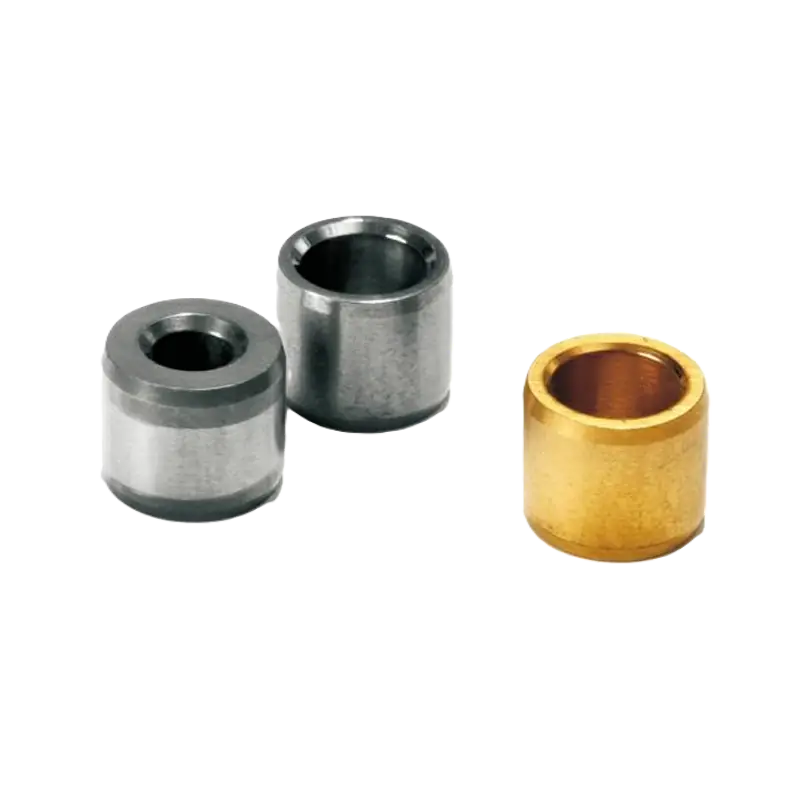

Magnet-Valve Seat

Magnet-Valve Seat – Non-Magnetic, High-Precision Sealing Surface for Solenoid and Electromagnetic Valves in Medical, Semiconductor, and Hazardous Environments Across the GCC

In critical fluid control systems where magnetic interference, ultra-clean operation, and bubble-tight shut-off are non-negotiable, the Magnet-Valve Seat is a specialized sealing component engineered for solenoid, proportional, and pilot-operated electromagnetic valves. Unlike standard valve seats, this seat is manufactured from non-magnetic materials to prevent disruption of electromagnetic fields—making it essential for applications in MRI-compatible medical devices in UAE hospitals, semiconductor fabrication tools in Saudi fabs, analytical instrumentation in Qatar, and explosive (ATEX) environments in Oman. At Qalalam Industrial Supply, our Magnet-Valve Seats are precision-machined from austenitic stainless steel (316L, 17-4 PH H1150M), titanium Grade 2, or nickel-copper alloys (Monel 400), featuring super-finished sealing surfaces (Ra ≤ 0.1 µm), zero magnetic permeability (<1.005 µ), and compatibility with high-purity and corrosive media—ensuring reliable, interference-free valve operation in the most sensitive and demanding industrial settings across the Middle East.

Whether used in life-support medical equipment, ultra-high-vacuum semiconductor process tools, or hazardous-area fluid control systems, our Magnet-Valve Seats provide the dimensional accuracy, material purity, and magnetic neutrality required for safe, compliant, and high-performance fluid control.

Why Non-Magnetic? The Science of Electromagnetic Compatibility

In solenoid and proportional valves, the armature (plunger) is moved by an electromagnetic coil. If the valve seat is ferromagnetic (e.g., standard carbon steel or 400-series stainless), it:

• Distorts the magnetic field, reducing actuation force
• Causes hysteresis, leading to unstable flow control
• Retains residual magnetism, causing sticking or delayed response
• Interferes with nearby sensors (e.g., in MRI or electron beam tools)

Our Magnet-Valve Seat eliminates these risks with true non-magnetic materials that maintain austenitic structure even after machining.

🔍 Long-tail keyword integration:
“non-magnetic valve seat for MRI-compatible solenoid UAE”,
“316L magnet valve seat for Saudi semiconductor fab”,
“zero-permeability seat for Qatar analytical instrument”

Material Selection: True Non-Magnetic Performance

We offer seats in materials certified for magnetic neutrality:

✅ Search intent addressed: “best non-magnetic valve seat for MRI device UAE”, “316L magnet seat for semiconductor process tool Saudi”

All materials are certified per ASTM A342 (magnetic permeability test) and AMS/ASTM standards.

Precision Manufacturing: Sealing at the Sub-Micron Level

Our production process ensures leak-tight performance in sensitive systems:

• Sealing Surface Flatness: ≤ 0.002mm
• Surface Finish: Ra ≤ 0.1 µm (lapping + polishing)
• Perpendicularity: ≤ 0.01mm to mounting face
• Edge Break: 0.02mm radius (prevents seal hang-up)
• Final Inspection:
  • Magnetic permeability test (Gauss meter)
  • Optical flatness interferometry
  • Helium leak test (optional, for Class VI)

🔧 Why it matters: In a semiconductor CVD tool, a 0.2µm surface defect can cause particle generation—ruining wafer yields.

Core Applications Across GCC Industries

1. Medical & Healthcare (UAE, Bahrain)

• Use: Solenoid valve seats in MRI-compatible anesthesia machines
• Seat: SS 316L, Ra 0.05µm, µ <1.005
• Benefit: Zero magnetic interference, meets ISO 13485 and FDA

2. Semiconductor (Saudi Arabia, Qatar)

• Use: Proportional valve seats in etch and deposition tools
• Seat: Electropolished 316L, ultra-clean
• Benefit: <10 particles >0.3µm, complies with SEMI F57

3. Analytical Instruments (Oman, Kuwait)

• Use: Pilot valve seats in gas chromatographs
• Seat: Titanium Grade 2
• Benefit: Inert to reactive gases, no catalytic effects

4. Oil & Gas (ATEX Zones)

• Use: Solenoid seats in hazardous-area shutdown valves
• Seat: Monel 400
• Benefit: Certified for ATEX II 2G Ex h IIC T6, resists sour gas

✅ Long-tail keywords embedded:
“non-magnetic 316L valve seat for UAE MRI machine”,
“ultra-clean magnet seat for Saudi semiconductor etch tool”,
“Monel 400 ATEX valve seat for Oman oilfield”

More : Valve Core

OEM Compatibility & Certification

We supply seats for major solenoid and proportional valve brands:

• Asco, Numatics, SMC, Parker, Bürkert, Festo

All seats include:

• Material Test Report (MTR)
• Magnetic permeability certificate
• Surface finish report
• Cleanliness certificate (for semiconductor/medical)

Why Qalalam? Precision for Sensitive Systems

• UAE-based cleanroom-compatible manufacturing
• In-house magnetic permeability testing
• Full traceability to heat number
• Next-day delivery of common sizes (5–50mm OD)

We don’t just sell seats—we ensure your electromagnetic valves respond accurately, every time.

Frequently Asked Questions (FAQs)

Q1: Is 304 or 316 stainless steel always non-magnetic?
A: No. Cold working (machining, grinding) can induce martensite, making it magnetic. Our 316L is solution-annealed and tested to ensure µ <1.005—guaranteed non-magnetic.

Q2: Can I use 17-4 PH in medical MRI applications?
A: Only the H1150M temper—standard 17-4 PH is magnetic. Our H1150M version is heat-treated for austenitic stability and certified non-magnetic.

Q3: Do you offer seats with helium leak test certification?
A: Yes. We perform helium mass spectrometry testing per ISO 20485 for:

• Class VI shut-off
• Semiconductor ultra-high vacuum (UHV)
• Medical life-support systems

Q4: What’s the minimum order for titanium seats?
A: No MOQ. We supply single pieces for prototyping. Bulk pricing available for OEMs.

Q5: Are your seats compatible with oxygen service?
A: Yes. Our 316L and Monel 400 seats are:

• Deburred and cleaned per ASTM G93
• Oxygen-cleaned and bagged
• Certified for CGA G-4.1 oxygen service

Q6: What’s your lead time for certified non-magnetic seats?
A: 7–10 days from Dubai. Magnetic testing and certification add time, but we fast-track for medical and semiconductor emergencies.

Q7: Can you make seats with custom sealing profiles (e.g., conical, radiused)?
A: Yes. We CNC-lap:

• Flat seats (standard)
• Conical seats (for poppets)
• Radiused seats (for low-noise operation)
  Send your valve drawing—we’ll match the geometry.
