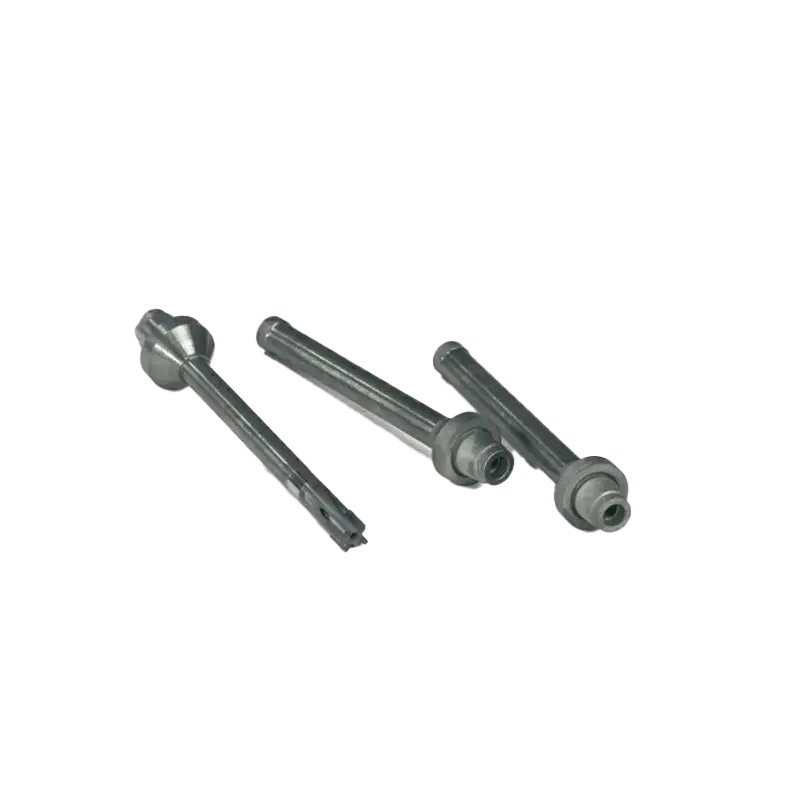

Extra Long Carbide Handle

Extra Long Carbide Handle – Ultra-Rigid, Wear-Resistant Tungsten Carbide Handles for Deep-Reach Tools, Mining Equipment, and Precision Fixturing in Demanding Industrial Applications

In applications where access depth, vibration resistance, and dimensional stability are critical—such as deep-hole drilling, underground mining tooling, reactor maintenance, and precision metrology—the Extra Long Carbide Handle is not a luxury, but a necessity. Unlike steel or aluminum extensions that deflect, bend, or wear under load, our Extra Long Carbide Handles leverage the exceptional stiffness (Young’s modulus of 600 GPa) and wear resistance of tungsten carbide to maintain alignment, transfer torque accurately, and resist abrasion over thousands of cycles. From oilfield whipstocks in Saudi desert wells to precision alignment tools in Dubai aerospace QA labs and mining drill rods in Omani copper mines, Qalalam Industrial Supply delivers monolithic, stress-relieved carbide handles up to 1,000mm in length—engineered to perform where conventional materials fail.

Far more than a simple rod with a grip, our Extra Long Carbide Handle is a precision-engineered structural component designed to solve real-world challenges: tool whip in deep cavities, erosion in abrasive slurries, thermal drift in measurement fixtures, and premature wear in high-cycle tooling. Whether used as a handle for manual scraping tools, a mandrel extension for tube drawing, a core for downhole drilling assemblies, or a reference shaft in CMM fixtures, our handles provide the rigidity, longevity, and reliability that modern GCC industries demand.

Why Carbide for Long Handles? Overcoming the Deflection Challenge

The primary failure mode of long tooling is deflection under load. Steel (E = 210 GPa) bends significantly at lengths >300mm, causing:

• Inaccurate drilling or scraping
• Vibration-induced fatigue
• Poor surface finish
• Premature wear at contact points

Tungsten carbide (E = 600 GPa) offers nearly 3x the stiffness—reducing deflection by 60–70% for the same diameter. This enables:

• True deep-reach capability without guide bushings
• Stable torque transmission in high-RPM applications
• Micron-level alignment in metrology

🔍 Long-tail keyword integration:
“extra long carbide handle for deep-hole scraping UAE”,
“1000mm tungsten carbide handle for mining drill rods Saudi Arabia”,
“rigid carbide extension handle for CMM alignment Qatar”

Material Grades: Balancing Stiffness, Toughness, and Machinability

We offer Extra Long Carbide Handles in grades optimized for length and load:

✅ Search intent addressed: “best carbide grade for long handle mining tools”, “non-magnetic extra long carbide handle for semiconductor”

All grades undergo stress-relief annealing at 800°C—critical for preventing post-machining warping in long parts.

Precision Manufacturing: Straightness Guaranteed

Producing straight carbide at 1m length is a metrology challenge. Our process ensures:

1. Isostatic Pressing: Uniform green density to prevent sintering warp
2. Vacuum Sintering + HIP: Full density, no internal stress
3. Stress-Relief Annealing: 800°C for 4 hours
4. Multi-Pass Centerless Grinding:
   • Diameter tolerance: ±0.01mm
   • Straightness: ≤ 0.03mm per 1,000mm (verified on granite table)
   • Roundness: ≤ 0.005mm
5. End Machining:
   • Threaded ends (metric, UNC, NPT)
   • Flatted sections for wrench grip
   • Tapered tips for pilot alignment

🔧 Critical spec: Straightness is non-negotiable—we measure every piece with laser alignment tools.

Core Applications Across GCC Industries

1. Industrial Maintenance (UAE, Qatar)

• Use: Deep-reach scraper handles for tank and vessel cleaning
• Handle: ELH-8, Ø12mm × 800mm, flatted end
• Benefit: No deflection when scraping 2m-deep reactor walls

2. Mining & Drilling (Saudi Arabia, Oman)

• Use: Core rods for underground exploration drills
• Handle: ELH-10, Ø20mm × 1,000mm, threaded ends
• Benefit: 3x life vs. steel in abrasive rock formations

3. Aerospace & Metrology (Dubai, Bahrain)

• Use: Reference handles for CMM probe extensions
• Handle: ELH-6, polished, Ra ≤ 0.2µm
• Benefit: Zero thermal drift, ±1µm repeatability

4. Oil & Gas Downhole Tools (Kuwait, UAE)

• Use: Mandrel extensions for whipstocks and reamers
• Handle: ELH-8, corrosion-resistant finish
• Benefit: Resists H₂S and sand erosion at 150°C

✅ Long-tail keywords embedded:
“800mm carbide scraper handle for tank cleaning UAE”,
“1000mm tungsten carbide drill rod for mining Saudi”,
“non-magnetic CMM extension handle Bahrain”

More : Protective Sleeve packing tool

Customization: Built to Your Exact Needs

We specialize in long, custom handles:

• Length: 300mm to 1,000mm (standard), up to 1,500mm (custom)
• Diameter: 6mm to 50mm
• End Features:
  • Internal/external threads (any standard)
  • Keyways or flats for torque transmission
  • Tapered or spherical tips
• Surface Finish:
  • Ground: Ra 0.4–0.8µm
  • Polished: Ra ≤ 0.2µm (for metrology)
• Marking: Laser-etched part number or length

💡 Pro Tip: For lengths >700mm, we recommend diameter ≥12mm to maintain rigidity—unless used in pure tension.

Performance Comparison: Why Carbide Wins for Long Handles

This makes carbide economical even at 3x upfront cost.

Why Qalalam? Precision at Length

• Only supplier in UAE with 1m-capable grinding
• In-house straightness certification—no third-party delays
• Field-tested in GCC harsh environments
• Bulk pricing with JIT delivery

We don’t just sell handles—we extend your reach without compromise.

Frequently Asked Questions (FAQs)

Q1: What’s the maximum length you can produce while guaranteeing straightness?
A: 1,000mm with ≤0.03mm straightness—achieved through stress-relieved billets and multi-support grinding. For 1,500mm, straightness is ≤0.05mm, suitable for non-precision applications like mining rods.

Q2: Can your extra long handles be used in high-speed rotating tools?
A: Yes—with balance. For RPM > 1,000, we recommend:

• Diameter ≥10mm
• Dynamic balancing (we offer this service)
• Secure, concentric mounting
  Carbide’s high density requires proper balancing, but its stiffness reduces vibration vs. steel.

Q3: How do I prevent carbide handles from cracking during installation?
A: Never clamp directly on carbide. Use:

• Soft-jaw fixtures with brass inserts
• Thermal fitting: Heat holder, cool handle
• Torque-limiting tools (max 20 Nm for M8 threads)
  We provide a free mounting guide with every order.

Q4: Are your handles suitable for food or pharmaceutical use?
A: Yes. Our ELH-6 grade can be:

• Electropolished to Ra ≤ 0.2µm
• Passivated per ASTM A967
• Certified to FDA 21 CFR and EU 1935/2004
  Used in long-reach cleaning tools for bioreactors.

Q5: Can you add internal channels (e.g., for coolant or wiring)?
A: Not in solid carbide—drilling compromises structural integrity. However, we offer carbide-tipped steel handles with internal bores for high-reach coolant delivery. The carbide tip provides wear resistance; the steel body handles channels.

Q6: What’s your lead time for a custom 900mm handle?
A: 7–10 days from Dubai. We keep blank preforms up to 1,000mm in stock—only final grinding and threading are custom.

Q7: Do you offer shorter samples for testing before bulk order?
A: Yes. We provide 300mm sample handles (same grade/finish) for AED 120 (refundable on bulk order). Most customers validate straightness and rigidity before committing to long lengths.
