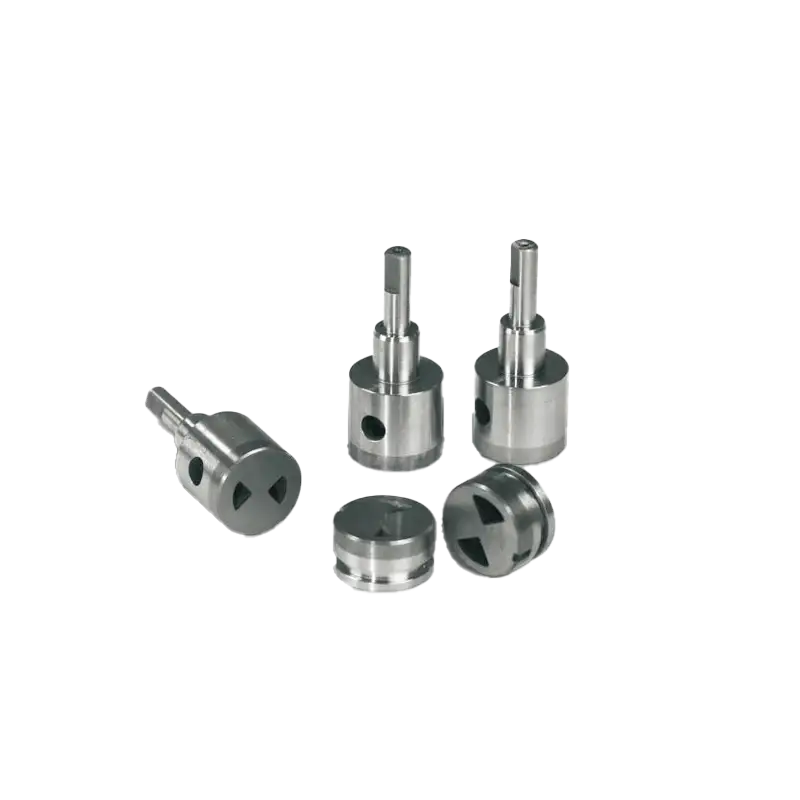

Valve Disk and Shaft

Valve Disk and Shaft – High-Performance, Wear-Resistant Valve Trim for Critical Control, Isolation, and Safety Applications in Oil & Gas, Power, and Process Industries

In high-pressure, high-cycle valve systems—where leak-tight shut-off, erosion resistance, and long-term reliability directly impact safety, efficiency, and environmental compliance—the Valve Disk and Shaft assembly is far more than a simple closure mechanism. It is the mission-critical sealing interface that must withstand abrasive slurries, corrosive chemicals, cavitation, and thermal cycling for thousands of operations without degradation. From sour gas control valves in Saudi oilfields to boiler feedwater regulators in UAE power plants and seawater isolation valves in Qatari desalination facilities, Qalalam Industrial Supply delivers precision-engineered Valve Disk and Shaft sets manufactured from Stellite-faced stainless steel, tungsten carbide, or Inconel alloys—ensuring bubble-tight shut-off, minimal maintenance, and decades of service life in the harshest GCC industrial environments.

Unlike standard trim that erodes, galls, or cracks under cyclic loading, our Valve Disks and Shafts are engineered as a matched pair—with complementary hardness, thermal expansion matching, and aerodynamic flow paths—to eliminate common failure modes like seat leakage, stem binding, and disk warping. Whether used in gate, globe, ball, or check valves from OEMs like Fisher, Crane, or Velan, our components meet or exceed API 600, API 602, and MSS SP-119 standards for critical service—giving you the confidence to operate safely, even in the most demanding conditions.

The Critical Role of the Disk-Shaft Interface

In valve operation, the disk provides the sealing surface, while the shaft (or stem) transmits torque or linear motion. Their synergy determines performance:

• Mismatched hardness → galling or accelerated wear
• Thermal expansion mismatch → binding or leakage at temperature
• Poor surface finish → micro-leakage or erosion initiation
• Inadequate erosion resistance → loss of shut-off integrity

Our solution: co-engineered pairs with:

• Disk: Hard-faced (Stellite 6, tungsten carbide)
• Shaft: Nitrided or carbide-coated, with polished sealing journal
• Clearance: Optimized for your pressure/temperature profile

🔍 Long-tail keyword integration:
“Stellite-faced valve disk and shaft for sour gas service UAE”,
“carbide valve trim for boiler feedwater control Saudi Arabia”,
“API 600-compliant valve disk shaft set for desalination Qatar”

Material & Facing Options: Engineered for Your Service

We offer Valve Disk and Shaft assemblies in configurations tailored to your fluid and duty:

✅ Search intent addressed: “best valve disk material for seawater service”, “carbide-faced valve trim for slurry control UAE”

All hard-facing is applied via precision plasma transfer arc (PTA) welding—not spray coating—for metallurgical bond strength and zero porosity.

Precision Manufacturing: Beyond Basic Machining

Our production process ensures perfect mating and long life:

1. Material Certification: Full MTR for base and hard-facing
2. CNC Machining:
   • Disk sealing face flatness: ≤ 0.005mm
   • Shaft journal roundness: ≤ 0.003mm
3. Hard-Facing:
   • PTA welding with controlled dilution
   • Post-weld stress relief at 600°C
4. Grinding & Lapping:
   • Disk face: Lapped to Ra ≤ 0.2µm
   • Shaft sealing surface: Ground to Ra ≤ 0.4µm
5. Final Inspection:
   • Blue match test with mating seat
   • Helium leak test (optional, for critical service)

🔧 Why it matters: A 0.01mm warp in the disk causes Class IV leakage—unacceptable in safety valves.

Core Applications Across GCC Industries

1. Oil & Gas – Sour Service (Saudi, UAE)

• Use: Control valves in gas sweetening units
• Trim: Inconel 718 + Stellite 21
• Benefit: Resists sulfide stress cracking (SSC) per NACE MR0175

2. Power Generation – Boiler Feedwater (Qatar, Oman)

• Use: High-pressure regulating valves
• Trim: F91 + Stellite 6
• Benefit: Handles 200 bar, 300°C with zero erosion

3. Desalination – Brine & Seawater (UAE, Kuwait)

• Use: Isolation valves in SWRO high-pressure lines
• Trim: Duplex 2205 + SiC coating
• Benefit: No pitting in 45,000 ppm chloride

4. Petrochemical – Slurry Service (Bahrain, Saudi)

• Use: Catalyst feed control valves
• Trim: SS 316 + Tungsten Carbide
• Benefit: 3x life vs. standard trim in alumina slurry

✅ Long-tail keywords embedded:
“NACE-compliant valve disk shaft for sour gas UAE”,
“Stellite 6 valve trim for boiler feedwater Saudi”,
“SiC-coated valve disk for SWRO desalination Qatar”

More : Superhard Nozzle Core (Hydraulic Injector)

OEM Cross-Reference & Replacement

We maintain databases for:

• Fisher: EZ, 8580, FIELDVUE
• Crane: SA, SAB
• Velan: 1000, 2000 series
• KSB, Flowserve, Tyco

Just provide:

• Valve model
• Size and pressure class
• Service conditions (fluid, T, P)

We deliver a direct-fit, upgraded-performance replacement—often with longer life than OEM.

Why Qalalam? Built for Critical GCC Service

• Local UAE inventory of common sizes (1″–12″, Class 150–2500)
• In-house PTA welding and lapping—no outsourcing
• NACE and API-certified processes
• Technical support with valve engineers

We don’t just sell trim—we ensure your valves seal when it matters most.

Frequently Asked Questions (FAQs)

Q1: Can I replace just the disk or shaft, or must I replace both?
A: Always replace as a matched pair. A new disk on an old, worn shaft (or vice versa) causes misalignment, leakage, or rapid wear. Our sets are lapped together to ensure perfect contact. Even if only one part is damaged, replacing both is cheaper than a valve leak shutdown.

Q2: What’s the difference between Stellite 6 and tungsten carbide facing?
A:

• Stellite 6: Tough, corrosion-resistant alloy—ideal for high-temp steam, sour gas, and moderate abrasion. Can be lapped in-field.
• Tungsten Carbide: Extreme hardness—best for severe abrasion (sand, catalyst) but brittle in impact. Not field-repairable.
  For seawater, we recommend SiC (silicon carbide)—best of both worlds.

Q3: Do your valve disks meet API 600 or API 602 standards?
A: Yes. All our trim is manufactured to API 600 (steel gate valves) and API 602 (small-bore) requirements, including:

• Hardness limits for sour service
• Impact testing (if required)
• Full material traceability
  We provide API compliance certificates with every order.

Q4: Can you refurbish old valve disks and shafts?
A: Yes—our refurbishment service includes:

1. Crack inspection (dye penetrant)
2. Removal of old facing
3. PTA re-facing with Stellite or carbide
4. Precision grinding and lapping
   Cost: 40–60% of new, with same warranty.

Q5: How do I know if my valve needs upgraded trim?
A: Signs include:

• Leakage past closed valve (Class II or worse)
• Increased actuator force to operate
• Visible erosion on disk edge
• Stem binding during cycling
  If your valve handles abrasives, high T/P, or sour service, upgraded trim is insurance.

Q6: What’s your lead time for custom valve disk and shaft sets?
A: 7–10 days for standard materials from Dubai. 12–15 days for Inconel or carbide. For urgent needs, rush service (3–5 days) is available at +25%.

Q7: Do you offer trim for non-standard valves (e.g., old Soviet or Chinese designs)?
A: Yes. Send us:

• Old parts (or precise measurements)
• Operating conditions
  We’ll reverse-engineer and manufacture a direct replacement—often with better materials than original.
