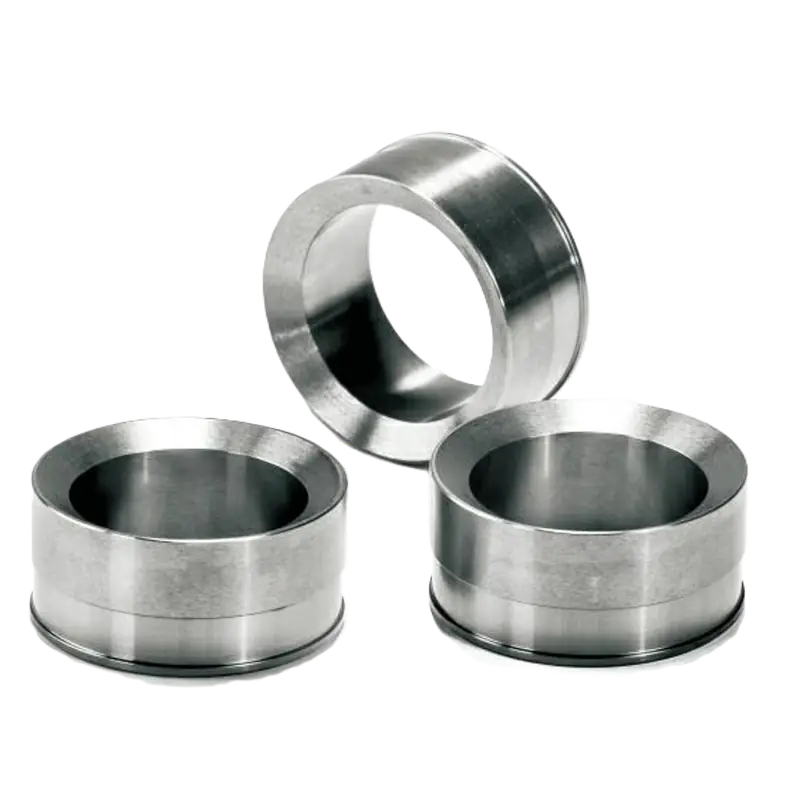

Flow Limitation Ring

Flow Limitation Ring – Precision Passive Flow Restrictor for Hydraulic Manifolds, Cartridge Valves, and Integrated Circuits in Industrial Machinery Across the GCC

In compact hydraulic and fluid power systems—where space is limited but precise flow control, overload protection, and energy efficiency are critical—the Flow Limitation Ring delivers a simple, reliable, and maintenance-free solution. Designed as a drop-in orifice ring for cartridge valves, manifold cavities, or inline adapters, this passive flow restrictor uses a fixed, calibrated orifice to cap maximum fluid flow, protecting downstream components like actuators, motors, and sensors from damage due to excessive speed or pressure surges. From mobile hydraulic circuits in UAE construction equipment and industrial presses in Saudi Arabia to injection molding machines in Qatar and material handling systems in Oman, Qalalam Industrial Supply’s Flow Limitation Rings are precision-manufactured from stainless steel 316, carbon steel, or brass, featuring laser-drilled orifices (±0.01mm tolerance), leak-tight sealing lands, and standard cavity compatibility—ensuring dependable performance in the most demanding Middle Eastern industrial environments.

Unlike electronic flow controls or complex valves, the Flow Limitation Ring is inherently fail-safe: it has no moving parts, no electronics, and no drift—making it ideal for harsh, remote, or hazardous applications where reliability and simplicity are paramount. Whether used for cylinder speed control, pump protection, circuit balancing, or safety compliance, this ring provides consistent, tamper-proof flow limitation for years with zero maintenance.

Core Function: Passive Flow Control in Minimal Space

The Flow Limitation Ring performs one critical task with maximum efficiency:

• Fixed Orifice Flow Restriction:
  Limits flow to a predetermined rate—regardless of pressure fluctuations—by forcing fluid through a precision-drilled orifice.
• Integrated Design:
  Fits directly into cartridge valve bodies, manifold ports, or adapter housings—no extra plumbing needed.
• Thermal & Pressure Stability:
  Maintains performance from –20°C to 120°C and up to 350 bar.

Because it’s monolithic and passive, it cannot fail, jam, or require recalibration.

🔍 Long-tail keyword integration:
“flow limitation ring for hydraulic cartridge valve UAE”,
“laser-drilled orifice ring for Saudi industrial press”,
“SS 316 flow restrictor ring for Qatar injection molding”

Material Selection: Matched to System Fluid and Pressure

We offer Flow Limitation Rings in materials engineered for your hydraulic or process fluid:

✅ Search intent addressed: “best flow limitation ring material for seawater hydraulic system”, “carbon steel orifice ring for UAE excavator”

All orifices are laser-drilled—not EDM or mechanical—to ensure smooth, burr-free flow paths and exact Cv values.

Key Technical Specifications

• Orifice Diameter: 0.3mm to 5.0mm (standard), custom up to 8mm
• Orifice Tolerance: ±0.01mm (laser-measured)
• Ring Dimensions:
  • OD: 10mm to 50mm
  • Thickness: 2mm to 10mm
• Sealing Lands:
  • O-ring grooves (AS568 standard)
  • Metal-to-metal seats (for high-temp)
• Pressure Rating: Up to 350 bar (5,000 PSI)

🔧 Pro Tip: For high-viscosity fluids, use orifices ≥1.5mm. For fine speed control, specify ±0.005mm tolerance—we provide Cv calibration reports on request.

Core Applications Across GCC Industries

1. Mobile Hydraulics (UAE, Oman)

• Use: Limiting boom extension speed on excavators and cranes
• Ring: Carbon steel, 1.2mm orifice
• Benefit: Prevents load drop accidents, meets safety regulations

2. Industrial Presses (Saudi Arabia, Kuwait)

• Use: Controlling ram descent speed in stamping presses
• Ring: Carbon steel, 2.0mm orifice
• Benefit: Ensures repeatable cycle times, protects dies

3. Injection Molding (Qatar, Bahrain)

• Use: Balancing flow to multiple mold cavities
• Ring: SS 316, 0.8mm orifice
• Benefit: Improves part consistency, reduces scrap

4. Food & Beverage (Dubai, Abu Dhabi)

• Use: Washdown system flow control
• Ring: Electropolished SS 316L
• Benefit: Meets 3-A and FDA 21 CFR standards

✅ Long-tail keywords embedded:
“carbon steel flow limitation ring for UAE excavator hydraulic”,
“SS 316 orifice ring for Saudi stamping press”,
“laser-drilled flow restrictor ring for Qatar injection molding”

Advantages Over External Flow Controls

Field feedback from a Dubai equipment OEM: “Reduced manifold size by 25% and eliminated 2 leak points per circuit.”

More : Protective Sleeve packing tool

Why Qalalam? Compact Control, Local Support

• UAE inventory of common sizes (OD 15–40mm)
• In-house laser drilling and flow testing
• Custom orifice calibration (Cv curve provided)
• Next-day delivery across GCC

We don’t just sell rings—we integrate safety and efficiency into your hydraulic circuit.

Frequently Asked Questions (FAQs)

Q1: Can I clean a flow limitation ring if it gets clogged?
A: Yes—easily. Because it’s a straight-through orifice, you can:

• Ultrasonic clean in 10 minutes
• Blow through with air
• Rod with soft wire (no metal!)
  No disassembly needed—just remove from the housing.

Q2: How do I choose the right orifice size for my application?
A: Provide:

• Desired flow rate (L/min)
• Fluid type and viscosity
• Max pressure drop available (bar)
  We’ll calculate the exact orifice and provide a flow performance chart.

Q3: Are your rings compatible with all cartridge valve brands?
A: Yes—for standard cavities. We match:

• Parker, Bosch Rexroth, Danfoss, HydraForce, Sun Hydraulics
  Just specify your valve model or cavity standard.

Q4: Can you make rings with multiple orifices?
A: Yes. We produce:

• Dual-orifice rings (for bi-directional circuits)
• Series orifices (for high ΔP, low noise)

Q5: Do flow limitation rings create heat in the system?
A: Yes—but controlled. Like all flow restrictions, they convert pressure to heat. To minimize:

• Use the largest orifice that meets your speed requirement
• Ensure adequate reservoir cooling

Q6: What’s your lead time for custom orifice rings?
A: 3–5 days from Dubai. Laser drilling is fast—we can produce any size from 0.3mm with full calibration.

Q7: Can these rings be used in water-glycol or HFDU fluids?
A: Yes. For water-based fluids, we recommend:

• Stainless steel 316 (resists corrosion)
• Electropolished surface (prevents particle adhesion)
  Avoid carbon steel in water-glycol—it will rust.

Used in MWD/LWD tools to regulate fluid flow. Made from wear-resistant carbide.
