Superhard Nozzle Core (Hydraulic Injector)

Superhard Nozzle Core (Hydraulic Injector) – Ultra-Wear-Resistant Carbide Core for High-Pressure Hydraulic Fracturing, Proppant Injection, and Downhole Stimulation in Harsh Oilfield Environments

In the extreme conditions of modern hydraulic fracturing—where abrasive proppants, ultra-high pressures (up to 15,000 PSI), and continuous cyclic loading rapidly degrade standard components—the Superhard Nozzle Core (Hydraulic Injector) is engineered to deliver unmatched durability and performance. Designed as the critical wear element inside fracking manifolds, treating iron, and downhole injection tools, this monolithic tungsten carbide core maintains precise orifice geometry despite relentless exposure to sand-laden slurries, acidic fracturing fluids, and thermal shock in the most demanding oil and gas basins across Saudi Arabia, the UAE, and the broader Middle East. At Qalalam Industrial Supply, our Superhard Nozzle Cores are manufactured using nano-grain tungsten carbide, advanced HIP densification, and erosion-optimized geometries—ensuring 3–5x longer service life than conventional steel or ceramic inserts and significantly reducing non-productive time (NPT) during critical well stimulation operations.

Unlike standard nozzle inserts that erode within hours in 100-mesh sand slurry, our Superhard Nozzle Core leverages ultra-fine microstructure (0.2–0.4µm grain size), high cobalt toughness (8–10%), and precision-lapped flow surfaces to resist both particle erosion and cavitation damage—delivering consistent jet velocity, stable treating pressures, and reliable proppant placement throughout multi-stage fracturing jobs. Whether used in surface manifolds, frack tree injectors, or downhole frac sleeves, this core is the ultimate solution for operators seeking to maximize equipment life, reduce replacement frequency, and maintain well integrity in abrasive Middle Eastern formations like the Khuff, Arab, and Unayzah reservoirs.

Why “Superhard”? The Science of Extreme Wear Resistance

The term “Superhard” refers to a specialized grade of cemented carbide engineered for the harshest erosive environments:

• Nano-Grain Structure (0.2–0.4µm): Minimizes intergranular erosion from sharp sand particles
• Optimized Cobalt Matrix (8–10%): Balances hardness (92–94 HRA) with transverse rupture strength (>3,000 MPa)
• HIP-Treated (Hot Isostatic Pressing): Eliminates internal porosity—the #1 cause of erosion initiation
• Mirror-Finish Flow Surfaces (Ra ≤ 0.2µm): Reduces turbulence and cavitation at ultra-high velocities

This combination allows the core to maintain orifice tolerance (±0.01mm) even after pumping thousands of barrels of 40/70 or 100-mesh sand.

🔍 Long-tail keyword integration:
“superhard nozzle core for hydraulic fracturing UAE”,
“carbide hydraulic injector core for Khuff formation Saudi Arabia”,
“abrasion-resistant fracking nozzle core for Middle East oilfields”

Material & Design: Built for Fracking Realities

We offer Superhard Nozzle Cores in two performance tiers:

✅ Search intent addressed: “best carbide grade for 100-mesh sand fracking”, “nano-grain nozzle core for high-pressure injection UAE”

Both grades comply with API 13D standards for proppant testing equipment and are suitable for surface and downhole use.

Key Technical Specifications

• Orifice Diameter: 0.5mm to 8.0mm (standard), custom up to 12mm
• Orifice Tolerance: ±0.01mm (laser-measured)
• Max Operating Pressure: 15,000 PSI (1,000 bar)
• Max Temperature: 200°C (392°F) continuous
• Surface Finish: Ra ≤ 0.2µm (flow surfaces), Ra ≤ 0.8µm (external)
• Geometry: Straight-through, conical inlet, or stepped orifice (per API)

🔧 Pro Tip: For high-rate fracs (>100 bpm), use SHC-10N with conical inlet—reduces pressure drop and erosion at the entrance.

Core Applications in GCC Oil & Gas

1. Surface Frac Manifolds (Saudi Arabia, UAE)

• Use: Injection points in high-pressure treating iron
• Core: SHC-10N, 4.0mm orifice
• Benefit: 5+ stages per core vs. 1–2 for steel—reduces redressing time

2. Downhole Frac Sleeves (Oman, Kuwait)

• Use: Nozzle inserts in sliding sleeve or plug-and-perf systems
• Core: SHC-8N, 2.5mm orifice, API 13D compliant
• Benefit: Maintains precise flow distribution across all clusters

3. Proppant Test Equipment (Qatar, Bahrain)

• Use: Calibration nozzles in lab-scale fracturing simulators
• Core: SHC-8N, Ra 0.1µm
• Benefit: Meets API 13D repeatability requirements

4. Acid Fracturing (Saudi, UAE)

• Use: Injection cores in HCl/gel mixtures
• Core: SHC-10N + Cr₃C₂ additive
• Benefit: Resists acid erosion and sand abrasion simultaneously

✅ Long-tail keywords embedded:
“API 13D superhard nozzle core for Saudi frac sleeves”,
“SHC-10N carbide injector core for UAE surface manifolds”,
“acid-resistant hydraulic nozzle core for Khuff formation”

Performance Comparison: Why Superhard Wins

Field data from an ADNOC well: Reduced nozzle-related NPT by 75% after switching to SHC-10N cores.

More : Carbide Rotator

Certification & Traceability

Every Superhard Nozzle Core includes:

• Material Test Report (MTR) with:
  • Grain size (micrograph)
  • Cobalt % (XRF verified)
  • Hardness (HRA)
  • Density (Archimedes)
• Dimensional Inspection Certificate (CMM data)
• API 13D Compliance Statement (on request)
• Laser-etched serial number for lifecycle tracking

Why Qalalam? Built for Middle East Fracking

• Local UAE inventory of common sizes (2–6mm orifice)
• In-house nano-carbide sintering and lapping
• Field-tested in Khuff and Arab formations
• Bulk pricing with JIT delivery for major service companies

We don’t just sell cores—we protect your frac integrity.

Frequently Asked Questions (FAQs)

Q1: What’s the difference between a standard carbide nozzle and a “Superhard” core?
A: Standard carbide (e.g., YG8) has 1.0–1.5µm grains—adequate for waterjet or slurry pumping. Superhard uses nano-grains (0.2–0.4µm) and optimized cobalt to resist the extreme abrasion of 100-mesh frac sand at 100+ BPM. In tests, Superhard lasts 3–5x longer in fracking service.

Q2: Are your cores API 13D compliant?
A: Yes. Our SHC-8N grade meets API 13D Section 5.3.2 for proppant testing nozzles, including:

• Orifice tolerance ±0.01mm
• Surface finish Ra ≤ 0.2µm
• Material hardness ≥92 HRA
  We provide certification documentation with every order.

Q3: Can you make cores for non-standard orifice shapes (e.g., elliptical)?
A: Yes—for specialized flow profiling. We use ultra-precision wire EDM to produce:

• Elliptical orifices for directional jetting
• Stepped orifices for pressure staging
• Multi-orifice arrays for cluster balancing
  Lead time: +3 days.

Q4: How do I install the core without cracking it?
A: Always:

• Use a shoulder driver (never hammer directly)
• Apply high-temp anti-seize (e.g., Molykote)
• Torque to spec (typically 30–50 Nm)
  We include a free installation guide with every shipment.

Q5: Do you offer refurbishment or re-tip services?
A: No—and here’s why: The core is monolithic. Once the orifice erodes, it cannot be restored without compromising structural integrity. Instead, we offer volume discounts and predictive replacement programs based on your job parameters.

Q6: What’s your lead time for custom orifice sizes?
A: 5–7 days from Dubai for standard grades. 10 days for nano-grain custom sizes. We keep 2–6mm SHC-10N in stock for next-day delivery.

Q7: Can your cores handle crosslinked gel + sand slurries?
A: Yes. The smooth, polished flow path prevents gel hang-up, and the nano-carbide resists sand erosion even in viscous fluids. In fact, gel reduces erosion by cushioning particle impact—extending core life vs. slickwater.

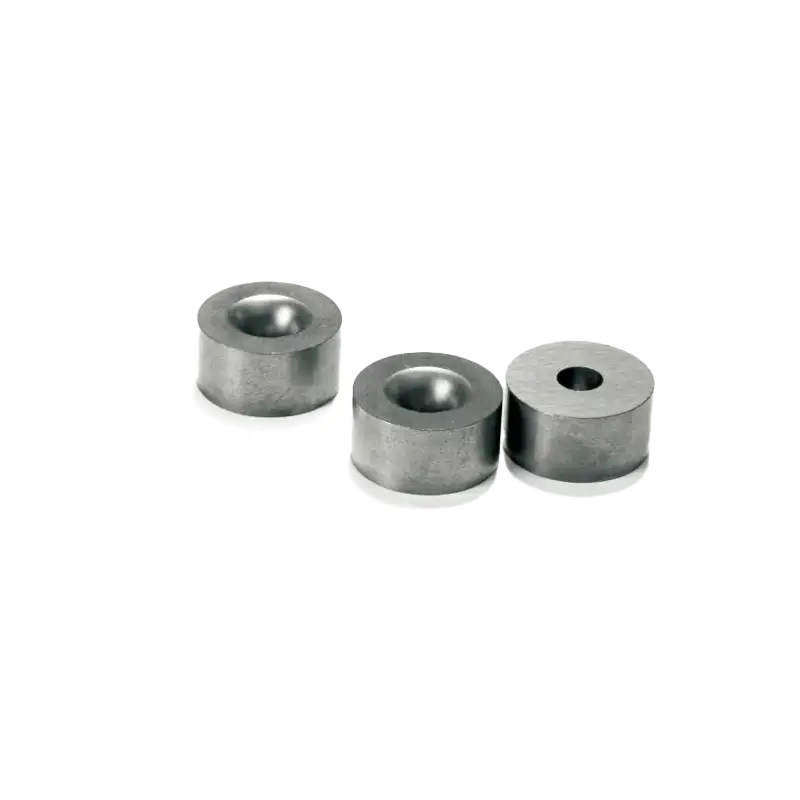

Dimensions: L:14 mm, D:13.8 mm, d:3.5 mm. Used in hydraulic injection tools.
