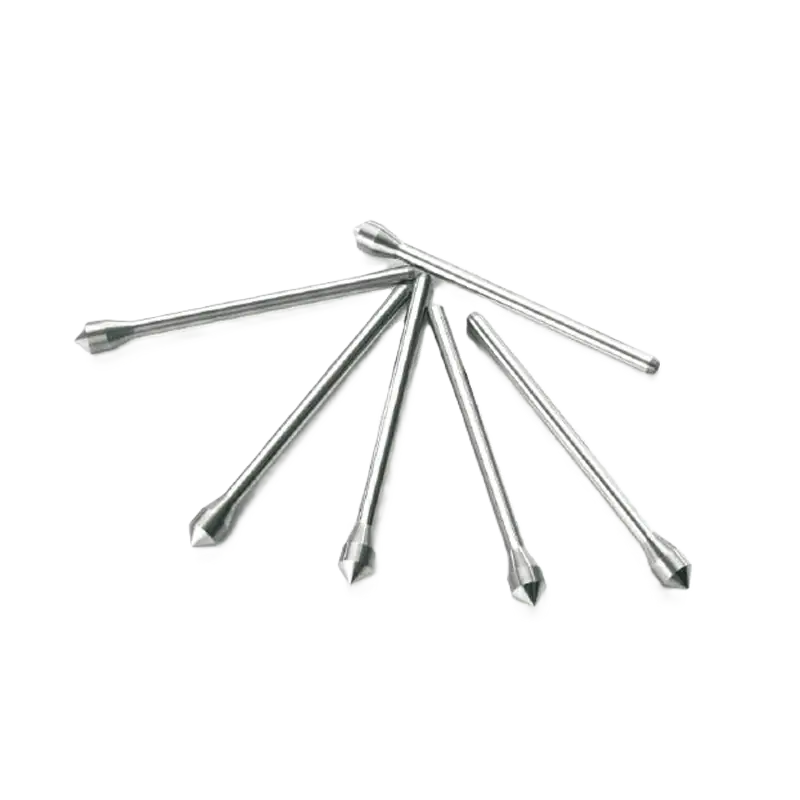

Magnet-Valve Stem

Magnet-Valve Stem – Non-Magnetic, High-Precision Plunger for Solenoid and Electromagnetic Valves in MRI, Semiconductor, and ATEX-Certified Systems Across the GCC

In electromagnetic fluid control systems—where magnetic field integrity, rapid response, and contamination-free operation are critical—the Magnet-Valve Stem (also known as a non-magnetic plunger or armature) is the dynamic core that translates electrical signals into precise mechanical motion. Unlike standard steel stems that distort magnetic fields and cause hysteresis, our Magnet-Valve Stem is engineered from certified non-magnetic alloys to ensure fast, repeatable, and interference-free actuation in the most sensitive applications across the Middle East—from MRI-compatible medical devices in UAE hospitals and ultra-high-purity gas panels in Saudi semiconductor fabs to ATEX-certified safety valves in Qatari oil & gas facilities and analytical instruments in Omani laboratories. At Qalalam Industrial Supply, our stems are precision-ground from austenitic stainless steel 316L, 17-4 PH H1150M, titanium Grade 2, or Monel 400, featuring micron-level roundness (≤0.002mm), super-finished surfaces (Ra ≤ 0.1 µm), and magnetic permeability <1.005 µ—ensuring reliable, high-cycle performance in environments where even trace magnetism can compromise safety or process integrity.

Whether used in life-critical medical ventilators, nanometer-scale semiconductor etch tools, or explosive atmosphere control valves, our Magnet-Valve Stems deliver the material purity, dimensional accuracy, and electromagnetic compatibility required for fail-safe operation in the GCC’s most advanced industrial and healthcare systems.

Why Non-Magnetic? Ensuring Electromagnetic Fidelity

In solenoid and proportional valves, the stem (plunger) moves within an electromagnetic coil. If the stem is ferromagnetic:

• It saturates the magnetic circuit, reducing force and speed
• It retains residual magnetism, causing sticking or sluggish return
• It interferes with adjacent sensors (e.g., in MRI rooms or electron microscopes)
• It fails ATEX/IECEx certification for hazardous areas

Our Magnet-Valve Stem eliminates these risks with stable austenitic structure and zero magnetic retention—ensuring full stroke, fast response, and zero interference.

🔍 Long-tail keyword integration:
“non-magnetic valve stem for MRI solenoid UAE”,
“316L plunger for Saudi semiconductor gas valve”,
“ATEX-certified magnet stem for Qatar oilfield”

Material Selection: Certified for Zero Magnetic Interference

We offer stems in materials rigorously tested for magnetic neutrality:

✅ Search intent addressed: “best non-magnetic plunger for MRI valve UAE”, “316L magnet stem for semiconductor tool Saudi”

All materials are certified per ASTM A342 and AMS/ASTM standards, with full heat traceability.

Precision Manufacturing: Motion at the Micron Level

Our production process ensures smooth, chatter-free actuation:

• Diameter Tolerance: h6 (±0.009mm for 10mm)
• Roundness: ≤ 0.002mm
• Straightness: ≤ 0.003mm per 100mm
• Surface Finish: Ra ≤ 0.1 µm (ground + polished)
• Edge Break: 0.05mm radius (prevents coil damage)
• Final Inspection:
  • Magnetic permeability test (Gauss meter)
  • CMM for geometry
  • Cleanliness test (per SEMI F57 or ISO 13485)

🔧 Why it matters: In a high-frequency proportional valve, a 0.5µm surface defect causes chatter, noise, and premature coil burnout.

Core Applications Across GCC Industries

1. Medical Imaging (UAE, Bahrain)

• Use: Solenoid stems in MRI-compatible anesthesia and ventilator valves
• Stem: SS 316L, Ra 0.05µm, µ <1.005
• Benefit: Zero magnetic distortion, meets IEC 60601-2-33 for MRI safety

2. Semiconductor Fabrication (Saudi Arabia, Qatar)

• Use: Plungers in ultra-high-purity (UHP) gas control valves
• Stem: Electropolished 316L, particle-cleaned
• Benefit: <5 particles >0.3µm, complies with SEMI F57 and ISO Class 1

3. Oil & Gas (ATEX Zones)

• Use: Stems in explosion-proof shutdown valves
• Stem: Monel 400, ATEX II 2G certified
• Benefit: Safe operation in Zone 1/2, resists H₂S and sour gas

4. Analytical & Laboratory (Oman, Kuwait)

• Use: Plungers in gas chromatograph and mass spectrometer valves
• Stem: Titanium Grade 2
• Benefit: Chemically inert, no catalytic interference with samples

✅ Long-tail keywords embedded:
“non-magnetic 316L valve stem for UAE MRI ventilator”,
“ultra-clean plunger for Saudi semiconductor gas panel”,
“Monel 400 ATEX stem for Qatar sour gas valve”

More : Bore-hole Sealing Sleeve

OEM Compatibility & Certification

We supply stems for major valve brands:

• Asco, Numatics, SMC, Parker, Bürkert, Festo, Swagelok

All stems include:

• Material Test Report (MTR)
• Magnetic permeability certificate
• Surface finish and cleanliness report
• ATEX or ISO 13485 certification (on request)

Why Qalalam? Precision Motion, Zero Interference

• UAE-based cleanroom-compatible grinding
• In-house magnetic permeability and particle testing
• Full DFARS/ITAR support (for defense/medical)
• Next-day delivery of common sizes (3–20mm diameter)

We don’t just sell stems—we ensure your electromagnetic valves move with perfect fidelity.

Frequently Asked Questions (FAQs)

Q1: Can I use standard 316 stainless steel for a magnet valve stem?
A: Not reliably. Cold working during machining can induce martensite, making it magnetic. Our 316L is solution-annealed, tested, and certified to µ <1.005—guaranteed non-magnetic.

Q2: What’s the difference between 17-4 PH and 316L for stems?
A:

• 316L: Softer, fully corrosion-resistant, ideal for medical/semiconductor
• 17-4 PH H1150M: Harder, higher strength, for high-force solenoids—but only the H1150M temper is non-magnetic

Q3: Do you test every stem for magnetism?
A: Yes. Every batch undergoes ASTM A342 Method A testing with a fluxgate magnetometer. We provide certificates with µ values.

Q4: Are your stems compatible with oxygen service?
A: Yes. Our 316L and Monel 400 stems are:

• Deburred per ASTM F86
• Oxygen-cleaned per CGA G-4.1
• Bagged in Class 100 cleanroom

Q5: Can you make stems with custom tip geometries (e.g., conical, flat)?
A: Yes. We CNC-grind:

• Flat tips (for poppet sealing)
• Conical tips (for guided seating)
• Radiused tips (for low-noise operation)
  Send your valve drawing—we’ll match it exactly.

Q6: What’s your lead time for titanium stems?
A: 10–12 days from Dubai. We keep 316L and 17-4 PH in stock for 5–7 day delivery.

Q7: Do you offer stems for high-cycle applications (e.g., 10 million cycles)?
A: Yes. For high-cycle service, we recommend:

• 17-4 PH H1150M (high fatigue strength)
• Ra ≤ 0.05µm finish (reduces wear)
• Shot peening (optional, for stress relief)
  We provide life-cycle testing data on request.
