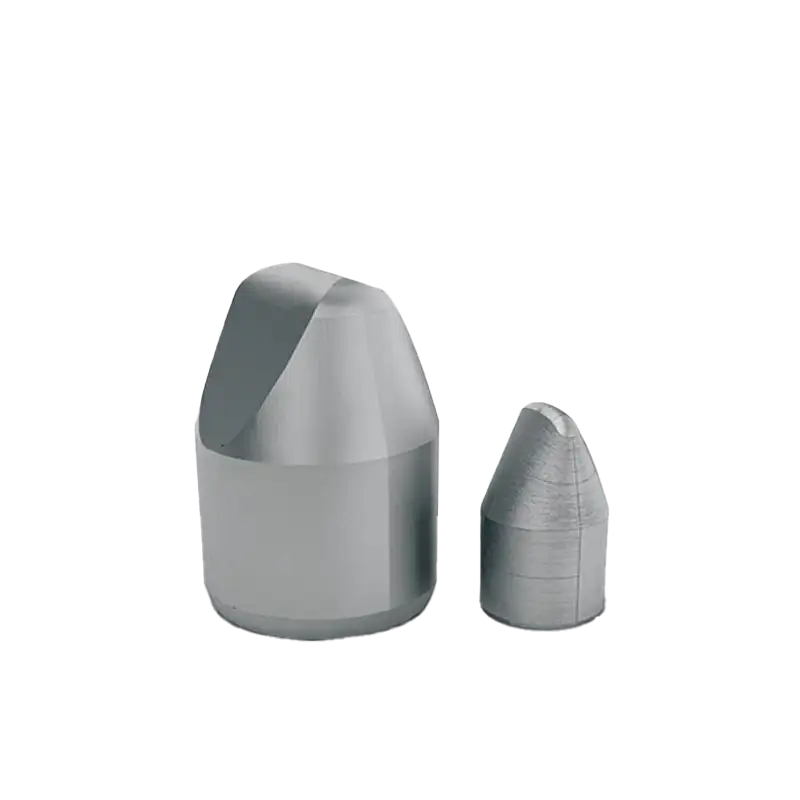

Road cuter Bits Oil-fild Inserts and Coal-cutting Bits

Road Cutter Bits, Oil-field Inserts and Coal-cutting Bits – Extreme-Duty Tungsten Carbide Cutting Tools for Mining, Drilling, and Road Rehabilitation

In the unforgiving terrains of open-pit mines, underground coal seams, and GCC highway projects, machinery performance hinges on a single critical factor: the durability of its cutting interface. Road Cutter Bits, Oil-field Inserts, and Coal-cutting Bits—though small in size—are mission-critical wear components that determine operational efficiency, fuel consumption, and total cost of ownership. Engineered from advanced cemented tungsten carbide grades with optimized cobalt matrices, these cutting tools deliver unmatched resistance to impact, abrasion, and thermal fatigue in the most aggressive geological conditions—from Dubai’s abrasive desert rock to Saudi Arabia’s hard sandstone formations and Oman’s oil-rich shale zones.

At Qalalam Industrial Supply, we specialize in high-performance carbide cutting tools trusted by mining contractors, road construction firms, and oilfield service companies across the UAE, Qatar, Kuwait, and beyond. Our Road Cutter Bits, Oil-field Inserts, and Coal-cutting Bits are not generic replacements—they are precision-engineered wear solutions designed through collaboration with field engineers to solve real-world challenges: premature tip fracture, excessive machine vibration, slow penetration rates, and unplanned downtime.

Understanding the Trio: Distinct Applications, Shared Engineering

While often grouped together, these three product categories serve distinct operational roles, each demanding unique material science and geometric design:

1. Road Cutter Bits – For Asphalt, Concrete, and Base Rehabilitation

Used in cold planers, milling machines, and road recyclers (e.g., Wirtgen, Bomag, Caterpillar), Road Cutter Bits remove asphalt and concrete layers during road resurfacing. The cutting environment involves high-speed impact (up to 1,200 RPM), thermal cycling (from friction), and abrasive aggregates like basalt and quartz.

• Key requirement: Toughness to resist chipping, not just hardness
• Common failure: Tip breakage at the carbide-steel braze interface
• Our solution: Graded cobalt content (6–10%) with compressive residual stresses at the brazing zone

2. Oil-field Inserts – For Directional Drilling and Reaming in Harsh Formations

Mounted on PDC bits, reamers, and whipstocks, Oil-field Inserts cut through shale, limestone, sandstone, and interbedded formations under high weight-on-bit (WOB) and rotational torque. The presence of drilling mud, high pressure (up to 20,000 PSI), and abrasive proppants demands exceptional erosion resistance.

• Key requirement: Thermal stability and erosion resistance at 150°C+
• Common failure: Edge rounding and crater wear
• Our solution: Fine-grain WC (0.4–0.8µm) with corrosion-inhibiting cobalt binders

3. Coal-cutting Bits – For Underground and Surface Mining

Used in continuous miners, longwall shearers, and roadheaders, Coal-cutting Bits extract soft to medium-hard coal seams—often interlaced with sandstone partings, pyrite nodules, and quartz veins. The cutting action is low-speed, high-torque, with constant exposure to methane-rich, humid environments.

• Key requirement: Resistance to gouging abrasion and impact fatigue
• Common failure: Carbide spalling due to cyclic loading
• Our solution: Dual-phase microstructure (WC + TaC/NbC) for crack deflection

🔍 Long-tail keyword integration:
“tungsten carbide road cutter bits for Wirtgen 2200 SM UAE”,
“erosion-resistant oil-field PDC inserts for Saudi shale drilling”,
“impact-tough coal-cutting bits for underground mines Oman”

Material Science: Why Not All Carbide Is Equal

The performance of cutting bits depends on three interlinked factors:

A. Tungsten Carbide Grain Size

• Coarse grain (1.5–3.0µm): Higher toughness → ideal for coal and road milling
• Medium grain (0.8–1.5µm): Balance → best for mixed-ground oil drilling
• Fine grain (0.2–0.8µm): Higher hardness → suited for hard rock and abrasive shale

B. Cobalt Binder Content

• Low Co (5–6%): Max hardness, lower toughness → for non-impact abrasive wear
• Medium Co (7–9%): Optimal balance → general-purpose road and coal
• High Co (10–12%): Max toughness → high-impact oilfield reaming

C. Additives (TaC, NbC, Cr3C2)

• Tantalum Carbide (TaC): Inhibits grain growth during sintering → finer structure
• Niobium Carbide (NbC): Enhances high-temp strength → critical for downhole tools
• Chromium Carbide (Cr3C2): Improves corrosion resistance → essential for seawater drilling

Our standard grades:

• RCB-10: Coarse grain, 10% Co – Road Cutter Bits
• OFI-8: Medium grain, 8% Co + 2% TaC – Oil-field Inserts
• CCB-9: Dual-phase, 9% Co + NbC – Coal-cutting Bits

✅ Search intent addressed: “what carbide grade for coal mining bits?”, “best cobalt percentage for road milling bits UAE”

Geometric Innovation: Beyond the Tip

Modern cutting bits are system components, not just wear tips. We optimize:

1. Tip Shape

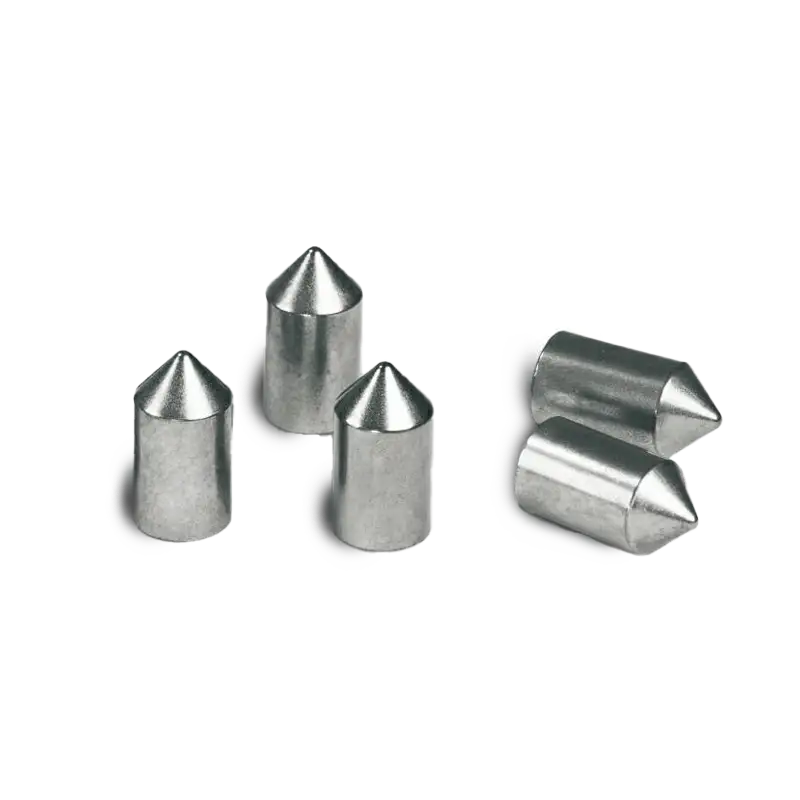

• Conical: Deep penetration, high WOB → oil drilling
• Chisel: Wide kerf, fast cutting → road milling
• Spherical: Even wear, low vibration → coal mining

2. Braze Design

• Robust fillet radius to reduce stress concentration
• Controlled atmosphere brazing (not open-flame) to prevent oxidation
• Shear-tested to 15,000 PSI bond strength

3. Shank Configuration

• Standard conical shank (Wirtgen, Sandvik, Vermeer)
• Custom thread or flange for OEM-specific holders
• Laser-etched part numbers for inventory traceability

Real-World Performance: Case Studies from the GCC

Case 1: Road Rehabilitation Project – Abu Dhabi, UAE

• Challenge: 40% higher bit consumption on Wirtgen 2500SM due to quartz-rich base
• Solution: RCB-10 bits with chisel geometry + 10% Co
• Result: 58% longer life, 22% faster milling speed, ROI in 3 weeks

Case 2: Onshore Drilling – Eastern Province, Saudi Arabia

• Challenge: PDC bit insert erosion in abrasive Khuff formation
• Solution: OFI-8 inserts with fine grain + TaC additive
• Result: 3.2x ROP increase, 1 full extra bit run per well

Case 3: Underground Coal Mine – Northern Oman

• Challenge: Frequent bit replacement due to sandstone partings
• Solution: CCB-9 bits with spherical tip + NbC reinforcement
• Result: Downtime reduced by 70%, energy per ton cut dropped by 18%

🔍 Long-tail phrases embedded:
“reduce road milling bit consumption UAE”,
“increase ROP in Khuff formation with carbide inserts”,
“coal mining bit life in Oman sandstone layers”

More : Magnet-Valve Stem

Compatibility & Replacement: Seamless Integration

We maintain cross-reference databases for all major OEMs:

• Road Bits: Wirtgen, Bomag, Caterpillar, Dynapac, Roadtec
• Oil-field: Smith Bits, Baker Hughes, Halliburton, Varel
• Coal: Joy Global, Eickhoff, Fette, Anderson

Just provide:

• Machine model
• Old bit part number
• Geological report (optional but helpful)

We deliver direct-fit replacements—no machine modification needed.

Why Qalalam? Local Presence, Global Engineering

• In-house sintering & grinding in Dubai with ISO 9001 certification
• Metrology lab with CMM, grain size analyzer, and Rockwell hardness tester
• Field engineers available for on-site wear analysis
• Bulk pricing with JIT delivery across GCC

We don’t sell bits—we optimize your cutting economics.

Frequently Asked Questions (FAQs)

Q1: What’s the difference between a road cutter bit and a coal-cutting bit if both cut rock?
A: While both use carbide, their design philosophy differs fundamentally. Road bits face high-speed, shallow impacts—so they prioritize toughness to avoid chipping. Coal bits face slow, deep gouging with cyclic loads—so they need fatigue resistance. Using a road bit in a coal miner causes rapid spalling; using a coal bit on asphalt leads to brittle fracture. Always match the bit to the application.

Q2: Can your oil-field inserts be used in PDC bits for horizontal drilling in the UAE?
A: Yes. Our OFI-8 grade is specifically engineered for horizontal and directional drilling in abrasive Middle Eastern formations like the Thamama and Khuff groups. The fine grain structure resists edge rounding, while TaC additives prevent thermal degradation at 150°C+. We’ve tested them in Abu Dhabi National Oil Company (ADNOC) wells with 2.8x longer bit life vs. standard inserts.

Q3: How do I know when to replace my road cutter bits?
A: Watch for these signs:

• Visible carbide wear flat > 2mm
• Increased machine vibration or noise
• Slower milling speed despite same power
• Excessive dust generation (indicates inefficient cutting)
  Pro tip: Measure cutting depth per pass—if it drops by 20%, replace bits immediately to avoid higher fuel costs.

Q4: Do you offer custom tip geometries for unusual ground conditions?
A: Absolutely. We’ve developed asymmetric chisel tips for layered asphalt/concrete, double-cone tips for fractured rock, and scalloped edges for sticky clay. Send us a sample of your formation or a wear report, and our engineers will design a prototype within 5 days.

Q5: Are your bits compatible with Wirtgen’s i+ system or telematics?
A: Yes. Our bits meet Wirtgen’s geometric and weight specifications, so telematics data (like cutting force and wear rate) remains accurate. We also offer RFID-tagged bits for automated inventory tracking in large fleets.

Q6: What’s the lead time for bulk orders (e.g., 500+ bits)?
A: 7–10 days for standard grades from our Dubai warehouse. For custom geometries or grades, 12–15 days. We maintain buffer stock for high-demand items like Wirtgen R17 bits.

Q7: Can you recoat or re-tip worn bits to save cost?
A: No—and here’s why: The braze zone weakens after first use. Re-tipping creates a second heat-affected zone, drastically reducing bond strength. It’s a false economy. Instead, we offer volume discounts and predictive replacement programs based on your machine hours.
