Insert Blanks And Saw Blades

Insert Blanks And Saw Blades – Precision Cemented Carbide Blanks for Industrial Cutting, Slitting, and Custom Tool Manufacturing

In the world of industrial fabrication, metalworking, and high-volume production, the performance of every saw, slitter, and cutting tool begins with one foundational element: the carbide insert blank. Far from being mere raw material, high-quality Insert Blanks and Saw Blades are engineered substrates that determine edge retention, dimensional stability, and operational efficiency across applications ranging from aluminum extrusion trimming in Dubai workshops to stainless steel slitting in Saudi steel mills and composite cutting in aerospace facilities across the GCC. At Qalalam Industrial Supply, we provide precision-ground cemented carbide blanks and ready-to-use carbide-tipped saw blades manufactured to exacting tolerances—ensuring every cut is clean, every edge lasts longer, and every production hour delivers maximum value.

Unlike commodity-grade carbide, our blanks are produced using controlled grain growth technology, uniform cobalt distribution, and stress-relieved sintering—resulting in microstructures that resist chipping, deformation, and premature wear even under the most demanding conditions. Whether you are a toolmaker crafting custom inserts, a maintenance team replacing worn saw tips, or an OEM integrating carbide into automated cutting lines, our Insert Blanks and Saw Blades offer the consistency, reliability, and technical support your operation demands.

The Critical Role of Carbide Blanks in Modern Manufacturing

Carbide insert blanks serve as the raw canvas for cutting-edge tooling. They are not end products—but they define the performance ceiling of every tool made from them. Key industries relying on precision blanks include:

• Circular Saw Blade Manufacturers: Who braze carbide tips onto steel bodies for wood, metal, or plastic cutting
• Tool & Die Shops: Who grind custom inserts for lathes, milling cutters, and form tools
• Packaging & Converting Lines: Who use slitter knives for film, foil, and paper
• Automotive & Aerospace: Who require burr-free cuts in high-strength alloys
• Recycling Facilities: Who cut copper, aluminum, and scrap metal continuously

A subpar blank—riddled with porosity, inconsistent grain size, or internal stress—will crack during grinding or fail prematurely in service. That’s why material integrity matters more than price.

🔍 Long-tail keyword integration:
“precision carbide insert blanks for circular saw blade manufacturing UAE”,
“K10 grade carbide slitter blanks for aluminum foil converting Saudi Arabia”,
“stress-relieved cemented carbide blanks for aerospace tooling”

Material Grades: Matching Microstructure to Application

We offer insert blanks and saw blade tips in ISO-standard and custom carbide grades, each optimized for specific cutting challenges:

✅ Search intent addressed: “K10 vs K20 carbide blanks for metal vs wood sawing”, “best carbide grade for cutting stainless steel in UAE”

Each blank is HIP-treated (Hot Isostatic Pressing) to eliminate internal porosity—critical for preventing micro-cracks during high-speed grinding or brazing.

Geometric Precision: Beyond Flat and Square

Our blanks are available in standard and custom forms:

Standard Shapes

• Rectangular: For turning inserts, slitter knives

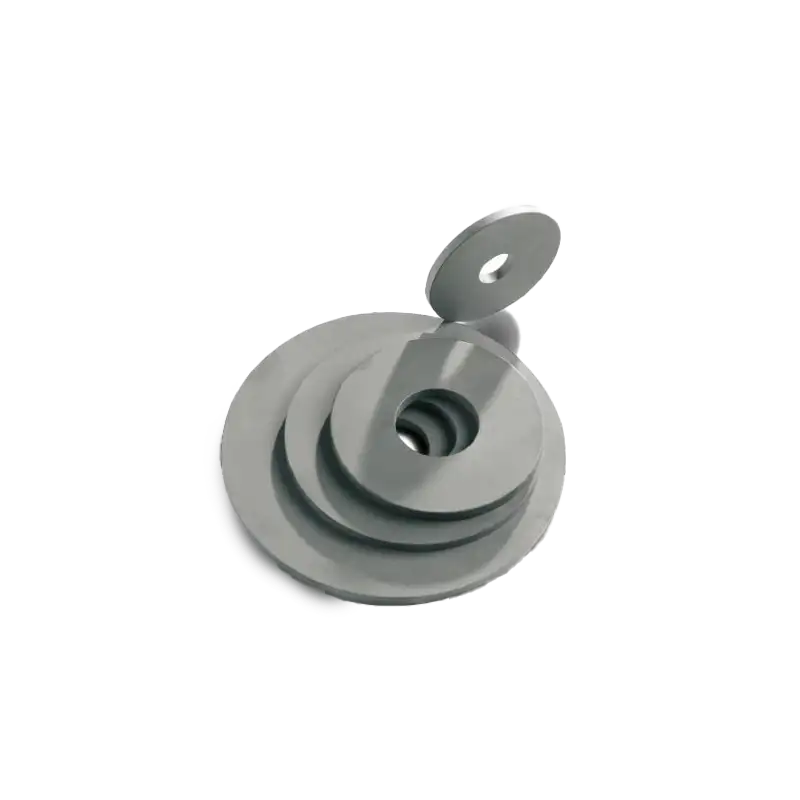

• Round Discs: For circular saw tips, router bits

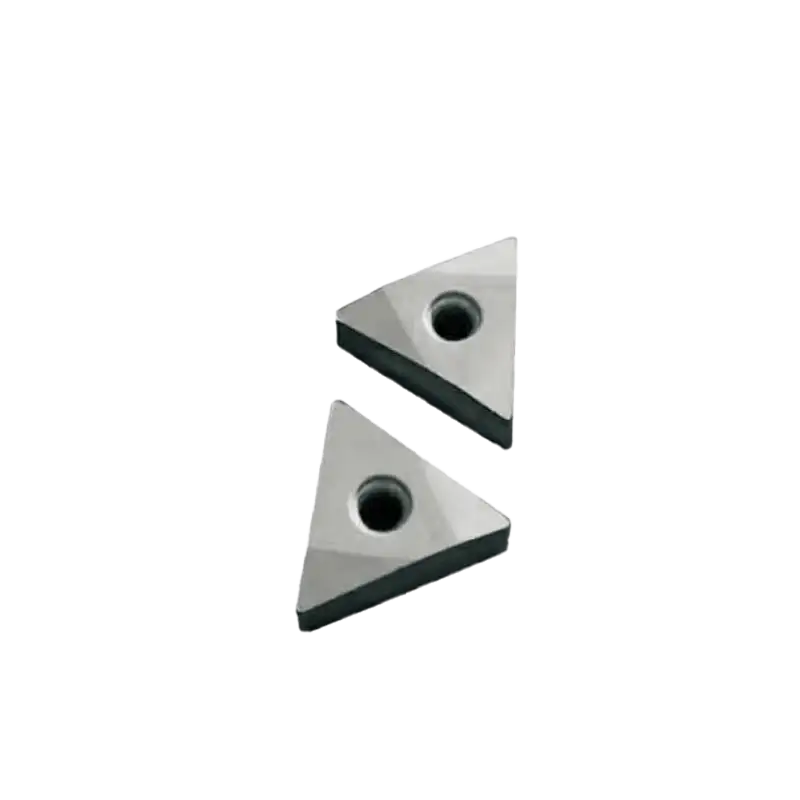

• Triangles / Squares: For indexable inserts
• Strips: For strip slitting and guillotine knives

Precision Tolerances

• Thickness: ±0.02mm
• Flatness: ≤0.01mm per 100mm
• Parallelism: ≤0.015mm
• Edge Chipping: None (100% visual inspected)

🔧 Why it matters: A 0.05mm thickness variation can cause uneven brazing stress—leading to tip loss during operation.

Surface Finish Options

• As-sintered: For cost-sensitive applications
• Centerless-ground: Ra ≤ 0.8µm — ideal for brazing
• Lapped: Ra ≤ 0.2µm — for optical or precision tooling

Saw Blades: From Blank to High-Performance Cutting Tool

While many customers buy blanks to make their own tools, we also supply finished carbide-tipped saw blades for immediate use:

More : Cemented Carbide Wear Half Ball

Types We Offer

• Circular Saw Blades: For aluminum, brass, copper, plastics
• Hole Saws: With carbide teeth for stainless steel
• Band Saw Tips: Pre-brazed segments for resharpening
• Cold Saw Blades: For structural steel cutting

Key Features

• Laser-welded or high-frequency brazed tips (not glued!)
• Tension-relieved steel body to prevent warping
• Precision-tensioned for vibration-free operation up to 5,000 RPM
• Custom tooth geometry: Triple-chip, alternate top bevel (ATB), flat top

🔍 Long-tail phrase: “carbide-tipped cold saw blades for structural steel UAE”, “aluminum cutting circular saw with K20 tips Dubai”

Technical Advantages Over Imported or Low-Grade Blanks

This translates directly to:

• 20–35% longer tool life
• 50% fewer grinding rejects
• Consistent cutting performance across batches

Applications Across GCC Industries

1. Aluminum Extrusion (UAE, Saudi)

• Use: Trimming flash from window frames
• Blank: K20 rectangular, 6×4×2mm
• Benefit: 3x life vs. standard grade in high-speed lines

2. Steel Slitting (Qatar, Oman)

• Use: Slitting coils for automotive panels
• Blank: K10 round discs, Ø8mm
• Benefit: Burr-free edges, reduced rework

3. Aerospace Composites (Dubai, Bahrain)

• Use: Cutting carbon fiber reinforced polymer (CFRP)
• Blank: K01 ultra-fine, custom triangle
• Benefit: No delamination, clean cut every time

4. Scrap Metal Recycling (Kuwait, UAE)

• Use: Cutting copper busbars and aluminum scrap
• Blank: GC-Grade, high-cobalt
• Benefit: Resists shock from irregular shapes

✅ Integrated long-tail keywords:
“carbide blanks for aluminum extrusion trimming UAE”,
“K10 slitter discs for automotive steel coils Qatar”,
“ultra-fine carbide for CFRP cutting Bahrain”

Why Choose Qalalam for Your Carbide Blanks?

• Local inventory in Dubai – no 6-week import delays
• Full traceability – every batch has MTR (Material Test Report)
• Custom cutting service – we can saw blanks to your exact size
• Technical consultation – help selecting grade, geometry, and finish
• Bulk pricing – tiered discounts for toolmakers and OEMs

We don’t just sell blanks—we enable precision manufacturing.

Frequently Asked Questions (FAQs)

Q1: What’s the difference between K10 and K20 carbide blanks for saw blade manufacturing?
A: K10 has finer grain and higher hardness—ideal for ferrous metals, stainless steel, and high-precision slitting where edge sharpness matters. K20 has coarser grain and higher toughness—best for non-ferrous metals (aluminum, copper), wood, and plastics where impact resistance is key. Using K10 on aluminum causes chipping; using K20 on steel leads to rapid dulling.

Q2: Can you cut custom shapes from your carbide blanks (e.g., trapezoidal or with holes)?
A: Yes. Using wire EDM and diamond sawing, we can produce custom profiles, internal holes, slots, and tapers with ±0.05mm tolerance. Common requests include trapezoidal slitter knives for packaging lines and segmented blanks for band saw re-tipping. Lead time: 5–7 days.

Q3: Do your blanks require special handling or grinding techniques?
A: Carbide is brittle—always use diamond wheels, light feed rates, and coolant during grinding. Never clamp too tightly (use soft jaws), and avoid thermal shock. We provide a free grinding guideline sheet with every order—optimized for UAE workshop conditions.

Q4: Are your carbide blanks suitable for brazing onto high-speed steel (HSS) bodies?
A: Absolutely. Our centerless-ground blanks have Ra ≤ 0.8µm surface finish—ideal for strong, void-free brazing with silver-copper alloys (e.g., BAg-24). We recommend controlled atmosphere furnaces over open flame to prevent oxidation. Tip: pre-plate with nickel if brazing in air.

Q5: How do I verify the grade of the carbide blank I received?
A: Every shipment includes a Material Test Report (MTR) with:

• Actual cobalt % (via XRF)
• Grain size (micrograph)
• Hardness (Rockwell A)
• Density and porosity class
  You can also request a sample blank for lab testing before bulk order.

Q6: Can you supply blanks that meet ISO 513 or ANSI B212 standards?
A: Yes. Our K10, K20, and M10 blanks fully comply with ISO 513 classification and ANSI B212 dimensional standards. We can provide certification upon request for aerospace or automotive audits.

Q7: What’s the minimum order quantity (MOQ) for custom-sized blanks?
A: No MOQ for standard grades. For custom sizes or grades, MOQ = 50 pieces, but we offer samples for testing at low cost. Many toolmakers start with a sample pack of 5 grades to test in their process.
