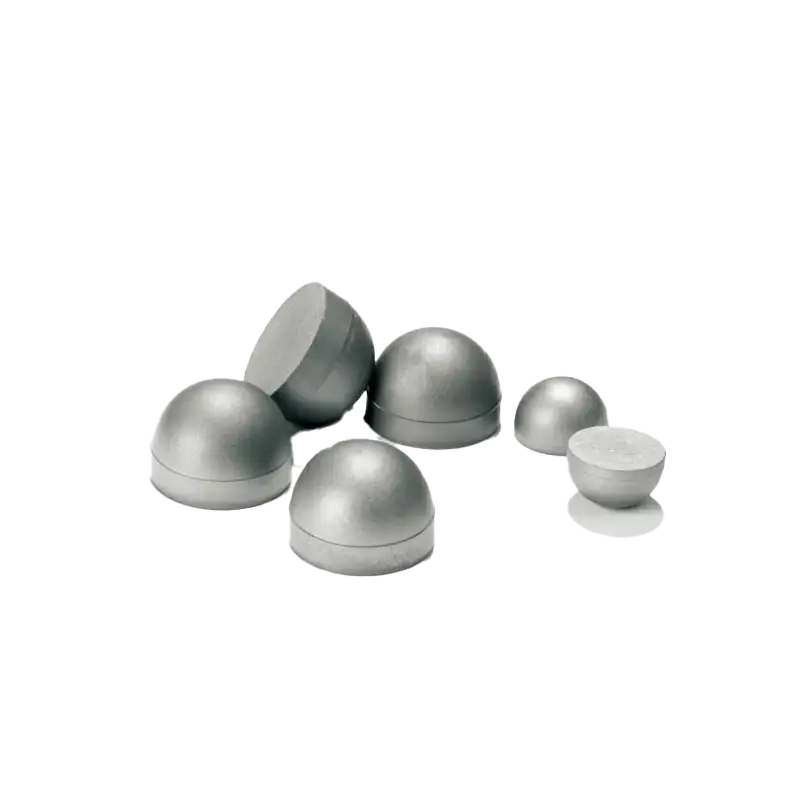

Cemented Carbide Wear Half Ball

Cemented Carbide Wear Half Ball – Ultra-Hard, Impact-Resistant Carbide Inserts for Valve Seating, Chute Lining, and Critical Wear Surfaces in Mining, Oil & Gas, and Material Handling Systems

In industrial systems where particle impact, sliding abrasion, and erosion-corrosion relentlessly degrade components, the Cemented Carbide Wear Half Ball serves as a highly engineered armor for the most vulnerable surfaces. Far more than a simple hemisphere, this precision-machined insert is designed to absorb kinetic energy, deflect abrasive media, and maintain dimensional integrity in extreme-duty applications—from slurry control valves in Saudi phosphate plants to chute liners in Dubai port bulk handlers and elbow protections in Qatari cement pneumatic conveyors. At Qalalam Industrial Supply, our Wear Half Balls are manufactured from dense, pore-free tungsten carbide with optimized cobalt content, ensuring they deliver exceptional service life, easy installation, and cost-effective protection across the GCC’s harshest industrial environments.

Unlike full balls or flat tiles, the half-ball geometry provides a smooth, convex surface that minimizes turbulence in flowing media while offering a large contact area for welding or bolting—making it ideal for retrofitting onto existing equipment without redesign. Whether used as a valve seat insert, elbow wear button, chute impact plate, or classifier screen protector, our Cemented Carbide Wear Half Balls reduce maintenance frequency, prevent unplanned downtime, and extend the life of high-value assets by 3x to 5x compared to standard steel or ceramic alternatives.

Why Half Ball? The Geometry of Wear Resistance

The hemispherical profile is engineered to solve three common wear challenges:

1. Impact Absorption:
   The curved surface distributes point loads from falling rocks or high-velocity particles—preventing cracking or spalling.
2. Flow Guidance:
   In slurry or pneumatic lines, the smooth contour reduces turbulence and prevents material buildup—unlike flat or sharp-edged wear plates.
3. Installation Flexibility:
   The flat base allows easy welding, brazing, or bolting onto complex surfaces (pipes, elbows, chutes) without special tooling.

🔍 Long-tail keyword integration:
“cemented carbide wear half ball for slurry valve seats UAE”,
“tungsten carbide half ball insert for mining chute liners Saudi Arabia”,
“impact-resistant carbide half ball for pneumatic cement conveying Qatar”

Material Grades: Toughness Meets Hardness

We offer Wear Half Balls in grades tailored to your wear mechanism:

✅ Search intent addressed: “best carbide grade for mining chute half balls”, “corrosion-resistant half ball for seawater slurry UAE”

All grades are HIP-treated (Hot Isostatic Pressing) to eliminate internal porosity—critical for impact resistance.

Precision Manufacturing: Consistent Geometry, Every Time

Our production process ensures reliable performance:

• Sintering + HIP: Full density, no internal flaws
• Stress Relief: 800°C anneal to prevent post-installation cracking
• Grinding:
  • Diameter tolerance: ±0.05mm
  • Sphericity: ≤ 0.1mm
  • Base flatness: ≤ 0.05mm (for secure mounting)
• Surface Finish:
  • As-ground: Ra 0.8µm
  • Polished: Ra ≤ 0.4µm (for valve seating)

🔧 Key feature: The base is precision-flat—ensures full contact during welding, eliminating gaps that cause thermal stress cracks.

Core Applications Across GCC Industries

1. Slurry Valves (Saudi Arabia, UAE)

• Use: Seat inserts in knife-gate and ball valves for phosphate slurry
• Half Ball: WHB-8, 25mm diameter
• Benefit: 5x life vs. Stellite, no leakage from erosion

2. Mining Chutes & Hoppers (Oman, Kuwait)

• Use: Impact zones in ore transfer chutes
• Half Ball: WHB-10, 40mm diameter, welded in grid pattern
• Benefit: Resists 100mm rock impacts at 2m drop height

3. Pneumatic Conveying (Qatar, Bahrain)

• Use: Elbow protection in cement and fly ash lines
• Half Ball: WHB-8, 30mm diameter, bolted
• Benefit: Eliminates elbow wear-through in 3 months

4. Port Bulk Handling (Dubai, Abu Dhabi)

• Use: Liner inserts in ship-loader chutes
• Half Ball: WHB-10, 50mm diameter
• Benefit: Handles abrasive bauxite and iron ore 24/7

✅ Long-tail keywords embedded:
“carbide half ball for phosphate slurry valve Saudi”,
“WHB-10 wear half ball for mining chute UAE”,
“bolt-on carbide half ball for cement elbow Qatar”

Installation Methods: Simple and Secure

We design for real-world installation:

• Welding:
  • Pre-heat to 300°C
  • Use low-hydrogen electrodes
  • Post-heat to 200°C for 2 hours
• Brazing: For precision valve seats (PTA or furnace)
• Mechanical Bolting:
  • Counterbored holes in base (M6, M8 standard)
  • Use high-temp threadlocker
• Adhesive Bonding: For non-structural applications (e.g., screens)

💡 Pro Tip: For high-impact zones, install half balls in a staggered grid—not side-by-side—to prevent crack propagation.

More : M-Type Carbide Plum Tooth

Performance Comparison: Why Half Ball Wins

Field data from an Oman copper mine: 70% reduction in chute maintenance labor after switching to WHB-10 half balls.

Why Qalalam? Built for GCC Harsh Duty

• Local UAE inventory of common sizes (10mm–50mm diameter)
• In-house grinding and testing—no outsourcing
• Field engineers who understand wear challenges
• Bulk pricing with JIT delivery for mines and ports

We don’t just sell half balls—we armor your critical surfaces.

Frequently Asked Questions (FAQs)

Q1: Can you supply full balls instead of half balls?
A: Yes—Cemented Carbide Full Balls are available for ball valves, grinding media, or flow control. However, half balls are preferred for wear protection because they offer a flat mounting surface. Full balls require complex sockets—half balls install in minutes.

Q2: What’s the largest half ball you can manufacture?
A: 100mm diameter as standard. For larger sizes (up to 150mm), we use segmented construction (3–4 pieces) to manage sintering distortion—then weld them in place. Common for ship-loader chutes in Dubai ports.

Q3: Do your half balls crack during welding?
A: Not if installed correctly. We provide a free welding procedure specification (WPS) that includes:

• Pre-heat temperature
• Interpass temp control
• Post-heat cycle
• Recommended electrodes
  Following this, crack rate is <0.5%.

Q4: Can they be used in high-temperature applications (e.g., clinker handling)?
A: Yes. Our WHB-8 grade is stable up to 500°C. For higher temps (up to 800°C), we offer chromium-doped WHB-Cr that resists oxidation and thermal softening—used in cement kiln inlets.

Q5: How do I choose the right diameter for my application?
A: General guidelines:

• Valve seats: 10–25mm
• Chute liners: 25–50mm
• Elbow protection: 30–40mm
• Heavy impact (rock fall): 50–100mm
  Send us a photo or drawing—we’ll recommend the optimal size and pattern.

Q6: Are your half balls magnetic?
A: Standard grades (WHB-6/8/10) are slightly magnetic due to cobalt binder. For non-magnetic applications (e.g., electronics recycling), we offer WHB-AM with nickel-iron binder—<0.1 Gauss response.

Q7: What’s your lead time for custom sizes?
A: 5–7 days for standard grades from Dubai. 10 days for Cr-doped or non-magnetic. We keep 10mm–50mm WHB-8 in stock for next-day delivery.

Models C134, C160, C190. Diameters from 13.44 mm to 19.05 mm.
