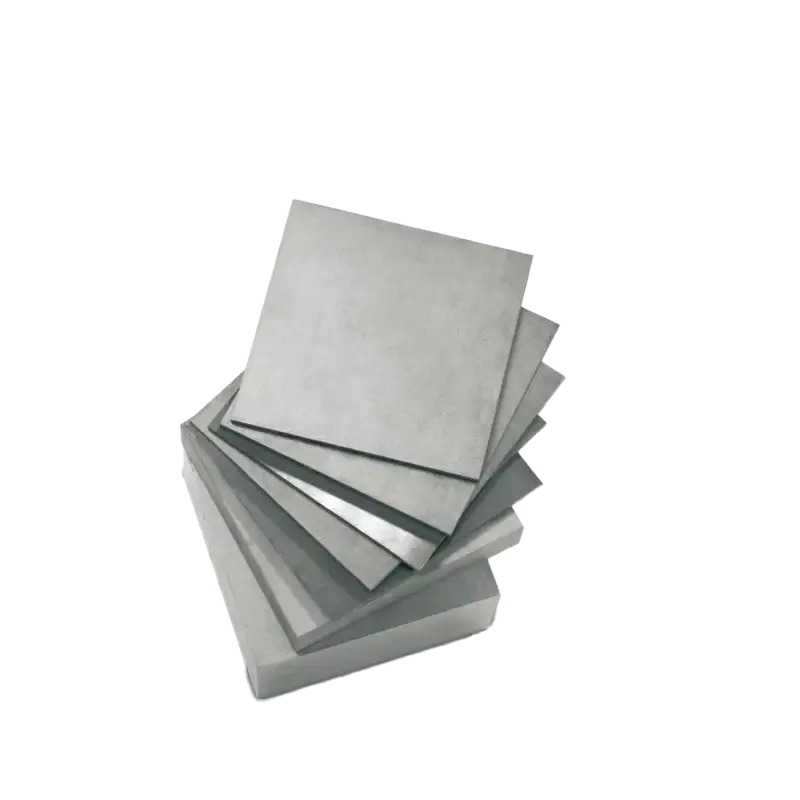

Carbide Strips & EDM Blanks

Carbide Strips & EDM Blanks – High-Density Cemented Carbide Substrates for Spark Erosion Machining, Precision Wear Parts, and Industrial Tooling

In advanced manufacturing environments—from EDM shops in Dubai’s industrial zones to aerospace component fabricators in Riyadh and textile machinery rebuilders in Muscat—the performance of every machined part begins with the quality of its raw substrate. Carbide Strips & EDM Blanks are not mere blocks of hard material; they are engineered platforms that determine machining accuracy, surface finish, and wear life in applications where failure is not an option. At Qalalam Industrial Supply, we provide ultra-homogeneous, pore-free carbide strips and EDM blanks specifically designed for electrical discharge machining (EDM), precision grinding, and direct use as wear components—ensuring your processes run smoother, faster, and with fewer rejects across the GCC.

Unlike commodity-grade carbide that suffers from internal porosity, inconsistent grain structure, or residual stress, our Carbide Strips & EDM Blanks are manufactured using vacuum sintering, hot isostatic pressing (HIP), and stress-relief annealing—resulting in microstructures that machine cleanly, resist cracking during wire cutting, and maintain dimensional stability under thermal and mechanical load. Whether you’re producing custom wire guides for textile machines, electrodes for mold making, or wear rails for automated assembly lines, our blanks deliver the material integrity and geometric precision your high-value operations demand.

Why EDM-Ready Carbide Matters: The Hidden Cost of Poor Substrates

Electrical Discharge Machining (EDM) is a non-contact, thermal erosion process that removes material via controlled sparks. It’s ideal for hard materials like tungsten carbide—but only if the blank is free of internal defects. Common issues with low-grade blanks include:

• Popping or micro-cracking during EDM due to trapped gases or porosity
• Uneven erosion rates from inconsistent cobalt distribution
• Poor surface finish requiring costly post-machining
• Dimensional drift from residual stress after cutting

Our EDM blanks solve these problems through:

• HIP treatment to eliminate internal voids
• Uniform cobalt binder (±0.3% variation)
• Stress-relief annealing at 800°C post-sintering
• Fine-to-medium grain structure for smooth spark erosion

🔍 Long-tail keyword integration:
“HIP-treated EDM carbide blanks for wire cutting UAE”,
“porosity-free carbide strips for aerospace EDM machining Saudi Arabia”,
“stress-relieved carbide blanks for textile wire guides Oman”

Material Grades: Optimized for Machinability and Function

We offer Carbide Strips & EDM Blanks in grades tailored to your end use:

✅ Search intent addressed: “best carbide grade for wire EDM electrodes”, “non-magnetic EDM blank for semiconductor fixtures”

All grades comply with ISO 3267 and DIN 242 standards for EDM suitability.

Geometric Precision: Ready for Your Machine

Standard Forms

• Rectangular Blanks: From 5×5×2mm to 100×50×20mm
• Strips: Width 2–50mm, Thickness 0.5–10mm, Length up to 500mm
• Discs & Rounds: For rotary EDM electrodes

Tolerances (As-Ground)

• Thickness/Width: ±0.02mm
• Length: ±0.05mm
• Flatness: ≤0.01mm per 100mm
• Parallelism: ≤0.015mm
• Edge: Light chamfer (0.1mm) to prevent chipping

🔧 Critical for EDM: Flatness ensures consistent spark gap—critical for surface finish and accuracy.

Surface Finish Options

• As-sintered: For roughing or internal parts
• Centerless-ground: Ra ≤ 0.8µm — standard for EDM
• Lapped: Ra ≤ 0.2µm — for optical or sealing surfaces

Core Applications Across GCC Industries

1. EDM Electrode Manufacturing (UAE, Qatar)

• Use: Machining complex cavities in H13 tool steel molds
• Blank: E10 rectangular, 25×25×50mm
• Benefit: Clean erosion, Ra ≤ 0.4µm finish, no post-polishing

2. Textile Machinery Components (Saudi Arabia, Oman)

• Use: Wire guides, eyelets, and tensioners in high-speed looms
• Blank: E10 strip, 10×2×200mm
• Benefit: Resists fiber abrasion, lasts 8+ months vs. 2 months for steel

3. Semiconductor & Electronics (Bahrain, Dubai)

• Use: Wafer handling rails, probe card guides
• Blank: E-AM non-magnetic strip
• Benefit: Zero magnetic interference, particle-free operation

4. Packaging & Converting (Kuwait, UAE)

• Use: Slitter spacers, film edge guides
• Blank: E20 strip with chamfered edges
• Benefit: Handles PET/foil at 500 m/min without wear

✅ Long-tail keywords embedded:
“EDM carbide blanks for mold making Dubai”,
“carbide wire guides for Sulzer looms Saudi Arabia”,
“non-magnetic carbide strips for wafer handling Bahrain”

EDM Machining Best Practices with Our Blanks

To maximize performance:

More : Modulator Wear Sleeve

• Use fine-grain graphite or copper electrodes for best finish
• Keep dielectric fluid clean and filtered (5µm or finer)
• Start with low current (1–2A) for finishing passes
• Avoid flushing pressure > 5 bar—can cause micro-cracks in fine grades

💡 Pro Tip: For mirror finishes, use our E05 grade with oil-based dielectric and multi-pass strategy (rough → semi-finish → finish).

Quality Assurance: Beyond Basic Certification

Every batch includes:

• Material Test Report (MTR) with:
  • Actual cobalt % (XRF verified)
  • Grain size (micrograph)
  • Density (Archimedes method)
  • Porosity class (ASTM B962)
• Ultrasonic testing for internal defects (optional)
• Flatness certificate from CMM inspection

This transparency ensures zero surprises during critical production runs.

Why Qalalam? Local Support, Global Standards

• UAE-based inventory—no 4–6 week import delays
• In-house grinding & cutting—customize size in 3 days
• Technical EDM support—help with parameters and grade selection
• Bulk pricing with JIT delivery for high-volume users

We don’t just supply blanks—we enable your precision manufacturing.

Frequently Asked Questions (FAQs)

Q1: Can I use standard carbide blanks for EDM, or do I need special “EDM-grade” material?
A: You need EDM-grade. Standard carbide often contains micro-porosity that causes “popping” (micro-explosions) during sparking, leading to pitted surfaces and electrode wear. Our E-series blanks are HIP-treated and stress-relieved—specifically designed for clean, predictable erosion. In tests, our E10 blanks produce 40% smoother surfaces than generic carbide at the same EDM settings.

Q2: What’s the smallest feature I can EDM into your carbide blanks?
A: With modern wire EDM, you can cut slots as narrow as 0.1mm and internal radii down to 0.05mm. Our E05 ultra-fine grade is recommended for features < 0.3mm—it resists micro-cracking better than coarser grades. Tip: Use deionized water with 5–10 µS conductivity for best results.

Q3: Do your EDM blanks require pre-heating before machining?
A: No—because they’re stress-relieved, you can machine them straight from the box. However, for deep cavities or thick sections, we recommend pre-heating to 60–80°C to minimize thermal shock. Never exceed 100°C—carbide loses strength above that.

Q4: Can you supply carbide strips with pre-drilled holes for mounting?
A: Yes. Using micro-EDM drilling, we can add holes from 0.2mm upward with ±0.005mm positional accuracy. Common for textile guides that require dowel pins or gauge blocks needing alignment features. Lead time: +2 days.

Q5: Are your carbide blanks suitable for sinker EDM (ram EDM) as well as wire EDM?
A: Absolutely. Our E10 and E20 grades are ideal for sinker EDM electrodes—they erode predictably and maintain sharp edges. For fine-detail sinker work (e.g., mold textures), E05 is preferred. We can even machine custom electrode shapes for you.

Q6: How do I prevent edge chipping during handling and fixturing?
A: Always:

• Handle with soft-tipped tweezers or gloves
• Use plastic or rubber-lined fixtures
• Avoid direct metal-to-carbide contact
• Store flat, not stacked vertically
  We include protective foam sleeves with every order over 10 pieces.

Q7: What’s your lead time for custom-sized EDM blanks?
A: 3–5 days for standard grades from Dubai stock. For custom sizes (e.g., 120×30×5mm), 5–7 days. We keep 100+ standard sizes in inventory—chances are we have what you need tomorrow.
